Product Name: 3A-14A Long Welding Liner

Item No:3A-3A-14A;    Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

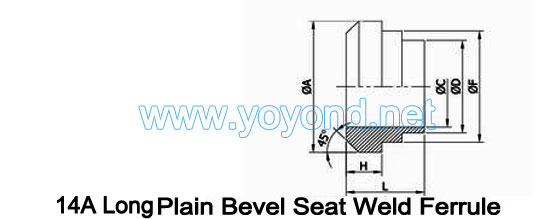

3A-14A Long Weld Liner
Size C D F A H L Part Number
inch inch inch inch inch inch inch SS304 SS316L
1" 0.874 1.000 1.161 1.311 0.468 1.374 14A4-100 14A6-100
1-1/2" 1.374 1.500 1.677 1.842 0.562 1.500 14A4-150 14A6-150
2" 1.874 2.000 2.192 2.374 0.625 1.500 14A4-200 14A6-200
2-1/2" 2.374 2.500 2.700 2.905 0.657 1.751 14A4-250 14A6-250
3" 2.874 3.000 3.618 3.437 0.720 1.751 14A4-300 14A6-300
4" 3.842 4.000 4.255 4.511 0.811 1.751 14A4-400 14A6-400

For help or to request more information, contact Email: yoyondsales@gmail.com
