Product Name: 3A-14MPHR - RUBBER HOSE ADAPTER (3A)

Item No:3A-14MPHR ;   Size: 1/2 "-4" ;   Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

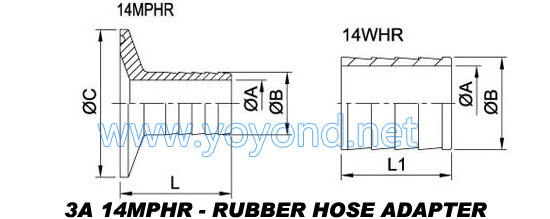

3A-14MPHR - RUBBER HOSE ADAPTER
3A-14RMP - Recessless Ferrule (3A) (For Expanding)
Size A B C L Part Number
inch inch inch inch inch SS304 SS316L
1/2"x1/2" 0.374 1/2" 0.992 1.50 14MPHR4-050050 14MPHR6-050050
3/4"x3/4" 0.622 3/4" 0.992 1.50 14MPHR4-075075 14MPHR6-075075
1.0"x1/2" 0.374 0.539 1.988 1.50 14MPHR4-100050 14MPHR6-100050
1.0"x3/4" 0.622 0.842 1.988 1.50 14MPHR4-100075 14MPHR6-100075
1.0"x1.0" 0.811 1.0" 1.988 1.69 14MPHR4-100100 14MPHR6-100100
1.5"x1/2" 0.374 0.539 1.988 1.50 14MPHR4-150050 14MPHR6-150050
1.5"x3/4" 0.622 0.842 1.988 1.50 14MPHR4-150075 14MPHR6-150075
1.5"x1.0" 0.811 1.0" 1.988 1.69 14MPHR4-150100 14MPHR6-150100
1.5"x1.5" 1.307 1.5" 1.988 1.69 14MPHR4-150150 14MPHR6-150150
2"x1.5" 1.307 1.5" 2.519 1.69 14MPHR4-200150 14MPHR6-200150
2"x2" 1.811 2" 2.519 2.31 14MPHR4-200200 14MPHR6-200200
2.5"x2.5" 2.311 2.5" 3.051 2.34 14MPHR4-250250 14MPHR6-250250
3"x3" 2.834 3" 3.582 3.09 14MPHR4-300300 14MPHR6-300300
4"x4" 3.842 4" 4.685 3.36 14MPHR4-400400 14MPHR6-400400

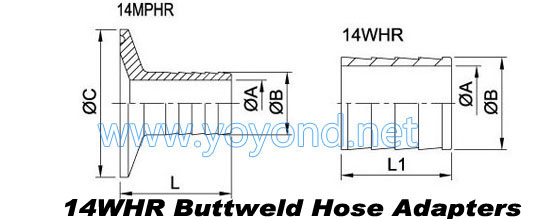

3A 14WHR Buttweld Hose Adapters
3A-14RMP - Recessless Ferrule (3A) (For Expanding)
Size A B L1 Part Number
inch inch inch inch SS304 SS316L
1/2" 0.374 1/2" 1.500 14WHR4-050 14WHR6-050
3/4" 0.622 3/4" 1.500 14WHR4-075 14WHR6-075
1.0" 0.811 1.0" 1.688 14WHR4-100 14WHR6-100
1.5" 1.307 1.5" 1.688 14WHR4-150 14WHR6-150
2.0" 1.811 2.0" 2.312 14WHR4-200 14WHR6-200
2.5" 2.311 2.5" 2.000 14WHR4-250 14WHR6-250
3" 2.834 3" 3.093 14WHR4-300 14WHR6-300
4" 3.842 4" 3.406 14WHR4-400 14WHR6-400
