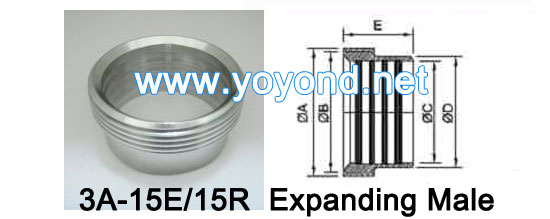

Product Name: 3A-15E 15R Recessless Threaded Bevel Seat Ferrule

Item No:3A-3A-15E/15R;    Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

3A 15R Recessless Male
Size C B A L Part Number
inch inch inch inch inch SS304 SS316L
1" 1.003 1.161 1.316 0.811 15R4-100 15R6-100
1-1/2" 1.503 1.677 1.848 1.125 15R4-150 15R6-150
2" 2.003 2.192 2.381 1.374 15R4-200 15R6-200
2-1/2" 2.503 2.700 2.912 1.500 15R4-250 15R6-250
3" 3.003 3.618 3.444 1.625 15R4-300 15R6-300
4" 4.003 4.255 4.509 1.625 15R4-400 15R6-400
