Product Name: 3A-15WI SHORT FEMALE FERRULES(I-LINE Ferrule)

Item No:3A-15WI;   Size: 1 "-4" ;   Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

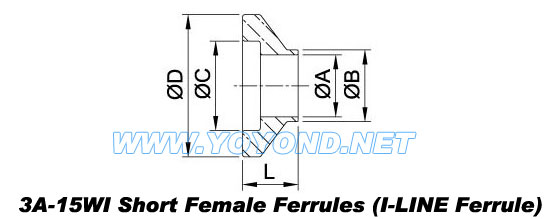

3A-15WI Ferrule Female
Size A B C D L Part Number
inch inch inch inch inch inch SS304 SS316L
1" 0.870 1.009 1.255 1.994 0.781 15WI4-100 15WI6-100
1-1/2" 1.370 1.509 1.755 1.994 0.937 15WI4-150 15WI6-150
2" 1.870 2.009 2.255 2.639 1.031 15WI4-200 15WI6-200
2-1/2" 2.370 2.509 2.755 3.307 1.155 15WI4-250 15WI6-250
3" 2.869 3.009 3.314 3.870 1.218 15WI4-300 15WI6-300
4" 3.833 4.009 4.314 4.870 1.342 15WI4-400 15WI6-400
