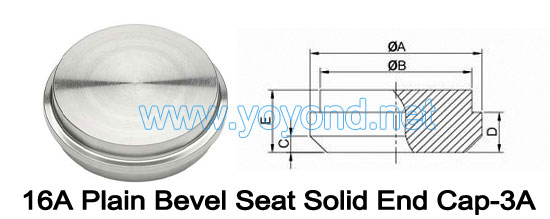

Product Name: 3A-16A Plain Bevel Seat Solid End Cap

Item No:3A-3A-16A;  Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

3A-16A Blank Cap
Size B A C E Part Number
inch inch inch inch inch SS304 SS316L
1" 1.161 1.311 0.311 0.468 16A4-100 16A6-100
1-1/2" 1.677 1.842 0.342 0.562 16A4-150 16A6-150
2" 2.192 2.374 0.405 0.625 16A4-200 16A6-200
2-1/2" 2.700 2.905 0.437 0.657 16A4-250 16A6-250
3" 3.618 3.437 0.468 0.720 16A4-300 16A6-300
4" 4.255 4.511 0.562 0.811 16A4-400 16A6-400
