Product Name: 3A-22MP Female NPT Clamp Adapters

Item No:3A-3A-22MP;   Size: 1/2 "- 4 " ;   Material: 304SS & 316LSS ;   Surface Treatment: CNC;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

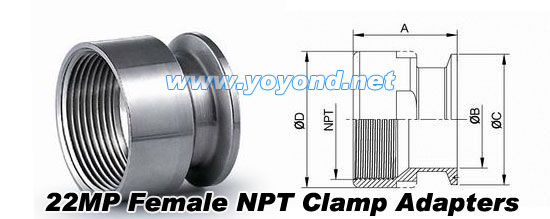

3A-22MP Female NPT Clamp Adapters
Size A B C D Part Number
inch inch inch inch inch SS304 SS316L
1/2" 1.625 0.370 0.992 1.181 22MP4-050 22MP6-050
3/4" 1.625 0.622 0.992 1.311 22MP4-075 22MP6-075
1" 1.625 0.870 1.988 1.625 22MP4-100 22MP6-100
1-1/2" 1.937 1.370 1.988 2.165 22MP4-150 22MP6-150
2" 1.937 1.870 2.519 2.874 22MP4-200 22MP6-200
2-1/2" 2.125 2.370 3.051 3.110 22MP4-250 22MP6-250
3" 2.311 2.870 3.582 3.937 22MP4-300 22MP6-300
4" 2.625 3.834 4.685 4.921 22MP4-400 22MP6-400
