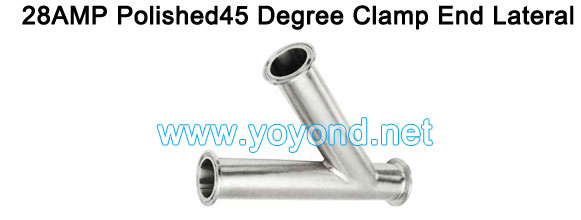

Product Name: 3A-28AMP 45 Degree Clamp End Lateral

Item No:3A-28AMP;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

28AMP 45 Degree Clamp End Lateral

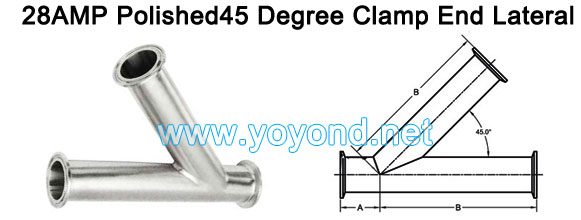

Size A B Part Number
inch inch inch SS304 SS316L
1/2" 1.5 5.5 28AMP4-050 28AMP6-050
3/4" 1.5 5.5 28AMP4-075 28AMP6-075
1" 1.5 5.5 28AMP4-100 28AMP6-100
1-1/2" 1.687 6.688 28AMP4-150 28AMP6-150
2" 2.125 7.625 28AMP4-200 28AMP6-200
2-1/2" 2 9 28AMP4-250 28AMP6-250
3" 2.375 9.375 28AMP4-300 28AMP6-300
4" 2.687 11.375 28AMP4-400 28AMP6-400
6" 4.375 13.25 28AMP4-600 28AMP6-600
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.

For help or to request more information, contact Email: yoyondsales@gmail.com
