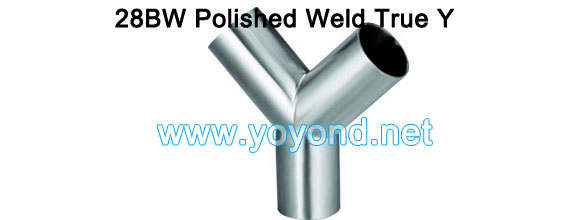

Product Name: 3A-28BW Polished Weld True Y

Item No:3A-28BW;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

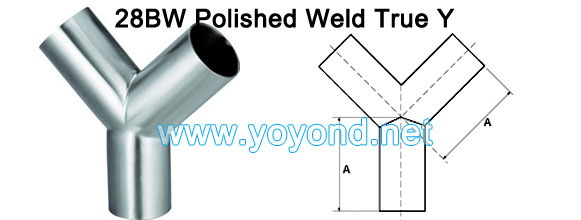

28BW Polished Weld True Y
Size A Part Number
inch inch SS304 SS316L
1/2" 2.000 28BW4-050 28BW6-050
3/4" 2.000 28BW4-075 28BW6-075
1" 3.000 28BW4-100 28BW6-100
1-1/2" 3.000 28BW4-150 28BW6-150
2" 4.000 28BW4-200 28BW6-200
2-1/2" 5.000 28BW4-250 28BW6-250
3" 6.000 28BW4-300 28BW6-300
4" 8.000 28BW4-400 28BW6-400
6" 8.000 28BW4-600 28BW6-600
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.
