Product Name: 3A-28CMP 90 Clamp Double Bend

Item No:3A-28CMP;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

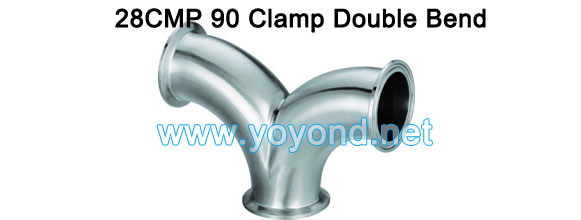

28CMP 90 Clamp Double Bend
Size L1 L2 Part Number
inch inch inch SS304 SS316L
1" 2.000 4.000 28BMP4-100 28BMP6-100
1-1/2" 2.750 5.500 28BMP4-150 28BMP6-150
2" 3.500 7.000 28BMP4-200 28BMP6-200
2-1/2" 4.250 8.500 28BMP4-250 28BMP6-250
3" 5.000 10.00 28BMP4-300 28BMP6-300
4" 6.625 13.25 28BMP4-400 28BMP6-400
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.
