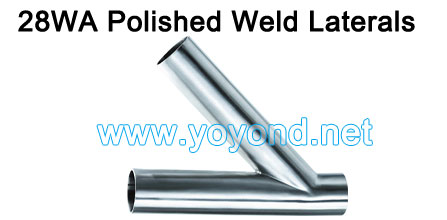

Product Name: 3A-28WA Polished Weld Laterals

Item No:3A-28WA;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

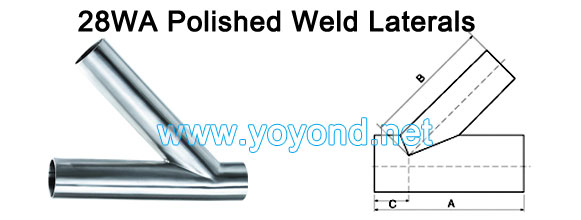

28WA Butt Weld Y-type Tee
Size A B C Part Number
inch inch inch inch SS304 SS316L
1/2" 6.000 5.000 1.000 28WA4-050 28WA6-050
3/4" 6.000 5.000 1.000 28WA4-075 28WA6-075
1" 6.000 5.000 1.000 28WA4-100 28WA6-100
1-1/2" 7.374 6.814 1.188 28WA4-150 28WA6-150
2" 8.748 7.122 1.625 28WA4-200 28WA6-200
2-1/2" 10.00 8.500 1.500 28WA4-250 28WA6-250
3" 10.75 8.874 1.874 28WA4-300 28WA6-300
4" 12.81 10.75 2.062 28WA4-400 28WA6-400
6" 16.50 12.50 4.000 28WA4-600 28WA6-600
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.
