Product Name: 2CMP 90 Deg Elbow Clamp 3A

Item No:3A-2CMP;   Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

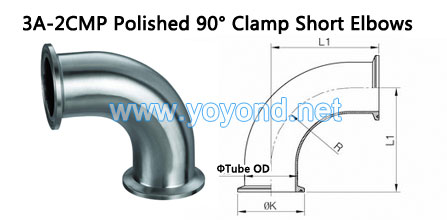

2CMP 90 Clamp Elbow
Size D L1 R T Part Number
inch inch inch inch inch SS304 SS316L
1" 1.000 2.000 1.5D 0.065 2CMP4-100 2CMP6-100
1-1/2" 1.500 2.750 1.5D 0.065 2CMP4-150 2CMP6-150
2" 2.000 3.500 1.5D 0.065 2CMP4-200 2CMP6-200
2-1/2" 2.500 4.250 1.5D 0.065 2CMP4-250 2CMP6-250
3" 3.000 5.000 1.5D 0.065 2CMP4-300 2CMP6-300
4" 4.000 6.625 1.5D 0.083 2CMP4-400 2CMP6-400
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.

For help or to request more information, contact Email: yoyondsales@gmail.com
