Product Name: 3A-32-14MP Clamp End Eccentric Reducer

Item No:3A-32-14MP;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

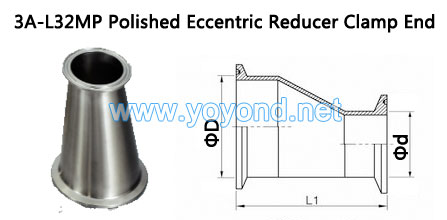

L32MP Eccentric Reducer Clamp End
Size D d L1 Part Number
inch inch inch inch SS304 SS316L
1-1/2"x1" 1.500 1.000 3.000 32-14MP4-150100 L32MP6-150100
2"x1-1/2" 2.000 1.500 3.000 32-14MP4-200150 L32MP6-200150
2-1/2"x1-1/2" 2.500 1.500 5.000 32-14MP4-250150 L32MP6-250150
2-1/2"x2" 2.500 2.000 3.000 32-14MP4-250200 L32MP6-250200
3"X1-1/2" 3.000 1.500 7.000 32-14MP4-300150 L32MP6-300150
3"X2" 3.000 2.000 5.000 32-14MP4-300200 L32MP6-300200
3"X2-1/2" 3.000 2.500 3.000 32-14MP4-300250 L32MP6-300250
4"X1-1/2" 4.000 1.500 11.12 32-14MP4-400150 L32MP6-400150
4"X2" 4.000 2.000 9.122 32-14MP4-400200 32-14MP6-400200
4"X2-1/2" 4.000 2.500 7.122 32-14MP4-400250 32-14MP6-400250
4"X3" 4.000 3.000 5.122 32-14MP4-400300 32-14MP6-400300
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.
