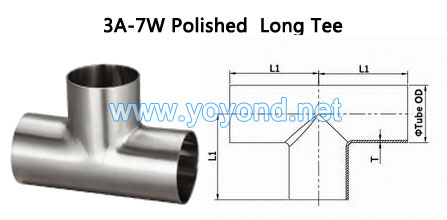

Product Name: 3A-7W Polished Long Equal Tee

Item No:3A-7W;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

7W Long Tee
Size A L L1 T Part Number
inch inch inch inch inch SS304 SS316L
1/2" 0.500 3.748 1.874 0.065 7W4-050 7W6-050
3/4" 0.750 3.748 1.874 0.065 7W4-075 7W6-075
1" 1.000 3.748 1.874 0.065 7W4-100 7W6-100
1-1/2" 1.500 4.503 2.251 0.065 7W4-150 7W6-150
2" 2.000 6.000 3.000 0.065 7W4-200 7W6-200
2-1/2" 2.500 6.000 3.000 0.065 7W4-250 7W6-250
3" 3.000 6.503 3.251 0.065 7W4-300 7W6-300
4" 4.000 7.748 3.874 0.083 7W4-400 7W6-400
6" 6.000 11.25 5.625 0.110 7W4-600 7W6-600
*The information contained herein is correct at the time of issue,
but may be subject to change without prior notice.
