Product Name: 3A-9MP Clamp End Equal Cross

Item No:3A-9MP;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

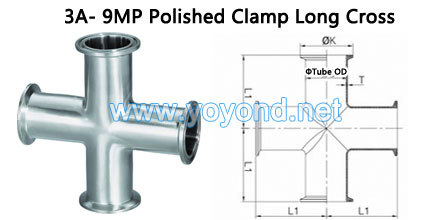

9MP Clamp Long Cross
Size D K L1 T Part Number
inch inch inch inch inch SS304 SS316L
1" 1.000 1.984 2.374 0.065 9MP4-100 9MP6-100
1-1/2" 1.500 1.984 2.751 0.065 9MP4-150 9MP6-150
2" 2.000 2.519 3.500 0.065 9MP4-200 9MP6-200
2-1/2" 2.500 3.051 3.500 0.065 9MP4-250 9MP6-250
3" 3.000 3.582 3.751 0.065 9MP4-300 9MP6-300
4" 4.000 4.685 4.496 0.083 9MP4-400 9MP6-400
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.

For help or to request more information, contact Email: yoyondsales@gmail.com
