Product Name: 9WWWW - Short Equal Cross

Item No:3A-9WWWW;    Material: 304SS & 316LSS ;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

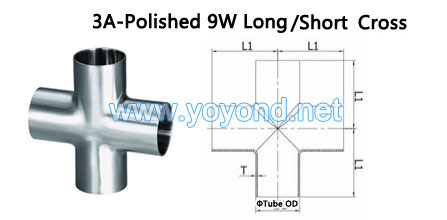

9WWWW Short Cross
Size D L L1 T Part Number
inch inch inch inch inch SS304 SS316L
1" 1.000 2.251 1.125 0.065 9WWWW4-100 9WWWW6-100
1-1/2" 1.500 3.314 1.657 0.065 9WWWW4-150 9WWWW6-150
2" 2.000 4.125 2.062 0.065 9WWWW4-200 9WWWW6-200
2-1/2" 2.500 4.685 2.342 0.065 9WWWW4-250 9WWWW6-250
3" 3.000 5.188 2.594 0.065 9WWWW4-300 9WWWW6-300
4" 4.000 6.874 3.437 0.083 9WWWW4-400 9WWWW6-400
*The information contained herein is correct at the time of issue, but may be subject to change without prior notice.
