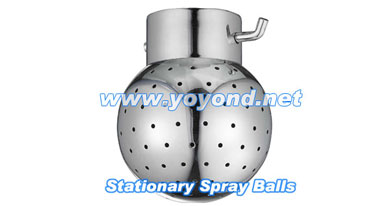

Product Name: Stationary Spray Balls
Yoyond spray balls are stationary. They are designed to be mounted to a tube or pipe.
All spray balls are 100% 316L stainless steel or 304 stainless steel,
polished to a 180 grit finish on the inside and outside.
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Size | Spray Pattern | A | B | C | D | E | Part Number | |
---|---|---|---|---|---|---|---|---|
inch | inch | inch | inch | inch | inch | inch | SS304 | SS316L |
1" | 180° bottom | 3.04 | 2.45 | 1.01 | 0.39 | 0.24 | SCT-180B-G100 | SCT-180B-R100 |
1-1/2" | 180° bottom | 3.54 | 2.95 | 1.51 | 0.43 | 0.24 | SCT-180B-G150 | SCT-180B-R150 |
1" | 180° top | 3.04 | 2.45 | 1.01 | 0.39 | 0.24 | SCT-180T-G100 | SCT-180T-R100 |
1-1/2" | 180° top | 3.54 | 2.95 | 1.51 | 0.43 | 0.24 | SCT-180T-G150 | SCT-180T-R150 |
1" | 360° | 3.04 | 2.45 | 1.01 | 0.39 | 0.24 | SCT-360-G100 | SCT-360-R100 |
1-1/2" | 360° | 3.54 | 2.95 | 1.51 | 0.43 | 0.24 | SCT-360-G150 | SCT-360-R150 |
*The information contained herein is correct at the time of
issue, but may be subject to change without prior notice.
For help or to request more information, contact Email: yoyondsales@gmail.com |
