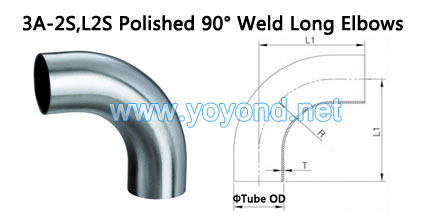

Product Name: 3A-L2S Polished Long 90 Degree Elbow
Item No:3A-L2S,2S; Material: 304SS & 316LSS ;
Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;
Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Size | OD | L1 | T | R | Part Number | |
---|---|---|---|---|---|---|
inch | inch | inch | inch | inch | SS304 | SS316L |
1/2" | 0.500 | 1.314 | 0.065 | 1.500 | L2S4-050 | L2S6-050 |
3/4" | 0.750 | 1.688 | 0.065 | 1.500 | L2S4-075 | L2S6-075 |
1" | 1.000 | 2.062 | 0.065 | 1.500 | L2S4-100 | L2S6-100 |
1-1/2" | 1.500 | 2.937 | 0.065 | 1.500 | L2S4-150 | L2S6-150 |
2" | 2.000 | 4.062 | 0.065 | 1.500 | L2S4-200 | L2S6-200 |
2-1/2" | 2.500 | 5.188 | 0.065 | 1.500 | L2S4-250 | L2S6-250 |
3" | 3.000 | 6.311 | 0.065 | 1.500 | L2S4-300 | L2S6-300 |
4" | 4.000 | 8.311 | 0.083 | 1.500 | L2S4-400 | L2S6-400 |
6" | 6.000 | 11.50 | 0.110 | 1.500 | L2S4-600 | L2S6-600 |
*The information contained herein is correct at the time of
issue, but may be subject to change without prior notice.
For help or to request more information, contact Email: yoyondsales@gmail.com |
