3A-T24-PP Hexagonal Tube Hangers With PP Inserts

Product Name: 3A-T24-PP Hexagonal Tube Hangers With PP Inserts

Item No:3A-3A-T24-PP;    Material: 304SS ;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

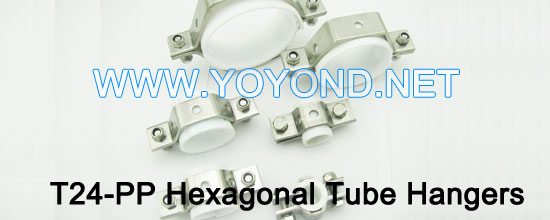

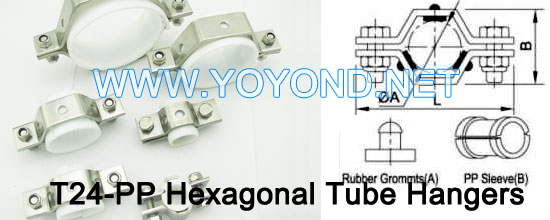

T24-PP Hexagonal Tube Hangers
Size A B L Thickness Part Number
inch inch inch inch inch SS304
1" 1" 1.669 3.409 0.158 T24PP-100
1-1/2" 1-1/2" 2.169 3.110 0.158 T24PP-150
2" 2" 2.669 3.622 0.158 T24PP-200
2-1/2" 2-1/2" 3.169 5.023 0.158 T24PP-250
3" 3" 3.669 5.590 0.158 T24PP-300
4" 4" 4.803 6.889 0.158 T24PP-400
6" 6" 6.850 9.252 0.158 T24PP-600

For help or to request more information, contact Email: yoyondsales@gmail.com
