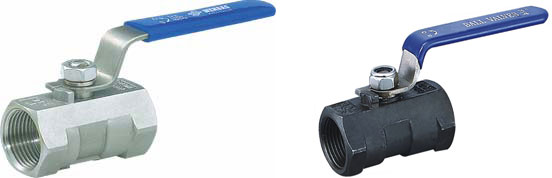

Product Name: 1-PC Screw Ball Valve


FEATURES：

·PIPE THREAD IN ACCORDANCE：NPT，BSPT，

DIN258，DIN2999，ISO228CLASSA

·NOMINAL PRESSURE：1.6~6.4MPA

·TEMPREATURE RANGE：-20℃~232℃~350℃

·SUITABLE MEDIUM：WATER，OIL，AIR AND

SOME CORROSIVE LIQUID

·BLOW-OUT PROOF STEM/FULL PORT

·INVESTMENT CASTING BODY

·1000PSI(PN63)W.O.G

·LOCKING DEVICE

·MATERIAL：

S45C/ASTM A216GR-WCB/DIN1.0619

SS316/ASTM A351GR-CF8M/DIN1.4408

Meterial

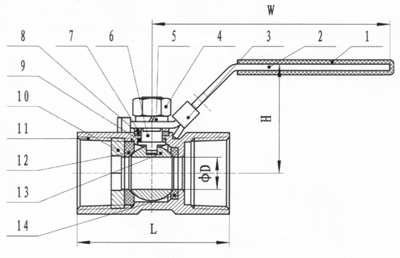

ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE
Dimension
1PC Ball Valve
SIZE D L H W Wgt/kg
1/4” 5 40 30 74 0.072
3/8” 7 45 30 74 0.095
1/2” 10 57 39.5 95 0.16
3/4” 10 60 42 95 0.26
1” 15.5 72 47 102 0.37
1-1/4” 20 78 55 124 0.635
1-1/2” 25 84 55 144 0.815
2” 32 100 63 144 1.28
2-1/2” 38 125.5 86.5 168 2.3
3” 50 150 93 192 2.99
4” 67 193 126.5 220 8.45
Bar Stock Ball Valve

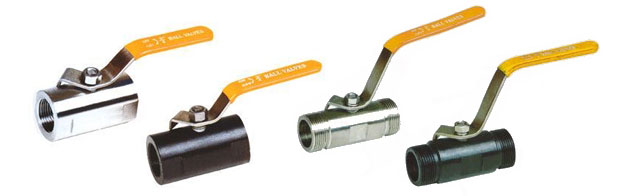

Product Name: Bar Stock Ball Valve


FEATURES：

Working Pressure: 1000WOG;

Reduced Bore;

Material: WCB,CF8,CF8M;

Suitable Medium: Water,Gas,Oil;

Thread End: BSP,BSPT.NPT;

Applicable Temperature: -40-250 ℃


Meterial
ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE

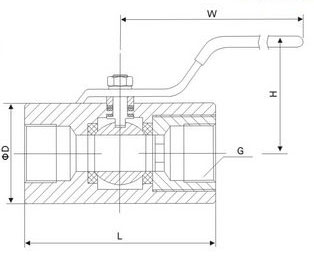

Dimension List
1PC Ball Valve
SIZE d D L W H
1/2” 11 32 60 110 58
3/4” 13 38 67 110 62
1” 17.7 45 73 110 68
1-1/4” 23 53 90 150 75
1-1/2” 25 61 97 150 83
2” 32 73 112 180 90
Dimension List
1PC Ball Valve

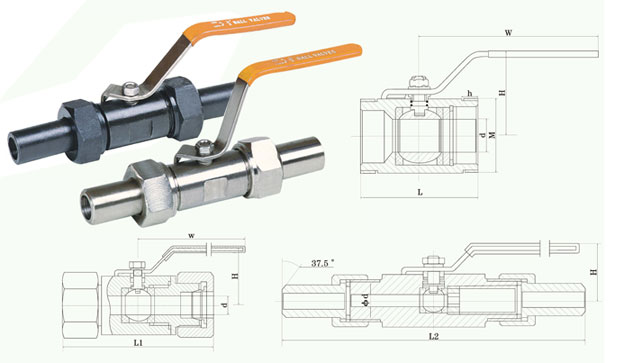

SIZE d L L1 L2 W H b M
DN10 8 60 85 135 110 58 16 24×1.5
DN15 11 60 85 156 110 58 16 30×2
DN20 13 67 90 174 110 62 18 36×2
DN25 17 73 100 188 110 68 20 42×2
DN32 23 90 125 216 150 75 20 52×2
DN40 25 97 135 135 150 83 25 60×3
DN50 32 112 140 255 180 90 25 72×3
1PC Hexangular Forged Steel Ball Valve

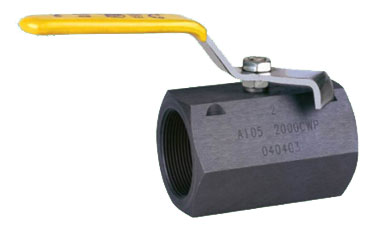

Product Name:1PC Hexangular Forged Steel Ball Valve


FEATURES：


1-PC Body,Hexangular Type

Threaded End: ANSI B1.20.1(NPT)

Conforms to ANSI B 16.34,NACE MR-01-75

Class 800(2000PSI);Reduced Bore

Materials: ASTM A182-F304,F316,ASTM A 105

Working Temperature:<300°(PPL)

Seat and Seal Ring: PTFE,R-PTFE,PPL

Applicable Medium: Water,Oil,Gas,Acid,etc


Meterial
ITEM DESIGNATION MATERIAL
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6 STEM 304/316
7 PACK RING 304
8 STEM PACKING PTFE
9 THRUST WASHER PTFE
10 CAP 304/316/WCB
11  BODY 304/316/WCB
12 BALL SEAT(A) PTFE
13 BALL 304/316
14 BALL SEAT(B) PTFE
Dimension List
1PC Ball Valve
SIZE d D L W H
1/2” 11 32 60 110 58
3/4” 13 38 67 110 62
1” 17.7 45 73 110 68
1-1/4” 23 53 90 150 75
1-1/2” 25 61 97 150 83
2” 32 73 112 180 90
