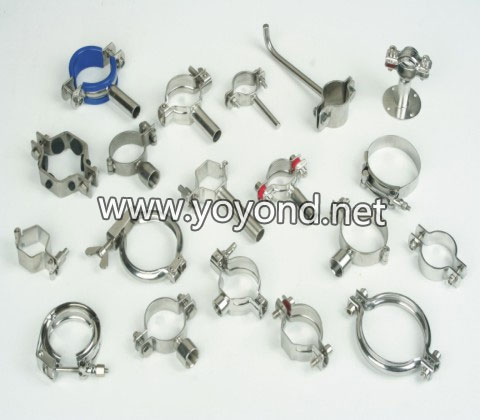

Product Name: SS Pipe Hanger/Press Clamp

Size: DN20-DN300, 3/4"-12", Φ19-Φ304;

Standard: DIN, ISO, SMS, 3A, IDF;

Material: SS 304, 202;

OEM: Can make according to customers' drawing and satisfy GMP standard.

Date Download:Pipe_Hanger(0.377MB)

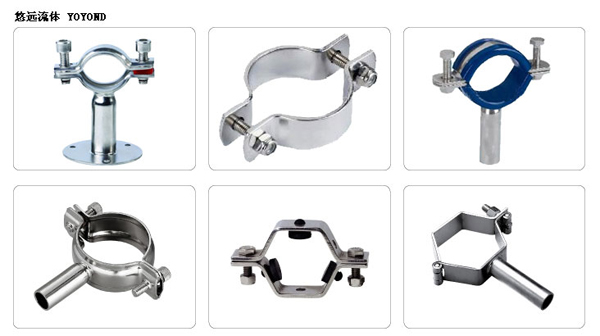

Round Pipe Hanger
Round Pipe Hanger
SIze H D
1" 61.0 25.4
1 1/4" 64.0 31.9
1 1/2" 67.0 38.1
2" 74.0 50.8
2 1/2" 80.0 63.5
3" 86.0 76.2
3 1/2" 93.0 89.0
4" 100.0 101.6
4" 1/4" 102.0 108.0
4 1/2" 105.0 114.0
5" 115.0 133.0
6" 128.0 159.0
Hex Tubing Hanger 1
Hex Tubing Hanger 1
SIZE A H
1" 87.0 36.8
1 1/2" 101.6 53.9
2" 114.3 63.5
2 1/2" 120.6 79.4
3" 139.7 96.2
4" 171.4 120.6
Hex Tubing Hanger 2
SIZE A H
1" 87.0 36.8
1 1/2" 101.6 53.9
2" 114.3 63.5
2 1/2" 120.6 79.4
3" 139.7 96.2
4" 171.4 120.6
Hex Tubing Hanger 3
SIZE A H
1" 87.0 36.8
1 1/2" 101.6 53.9
2" 114.3 63.5
2 1/2" 120.6 79.4
3" 139.7 96.2
4" 171.4 120.6
Round Pipe Hanger with Handle
SIZE A D
1" 66.0 25.4
1 1/2" 76.0 39.1
2" 90.0 50.6
2 1/2" 105.0 63.5
3" 120.0 76.3
4" 146.0 101.6
Hex Tubing Hanger with Handle 1
SIZE A D H
1" 66.0 25.4 45.0
1 1/2" 76.0 39.1 51.5
2" 90.0 50.6 58.0
2 1/2" 105.0 63.5 64.0
3" 120.0 76.3 70.5
4" 146.0 101.6 83.0
Round Pipe Hanger with Handle2
SIZE A D
1" 66.0 25.4
1 1/2" 76.0 39.1
2" 90.0 50.6
2 1/2" 105.0 63.5
3" 120.0 76.3
4" 146.0 101.6

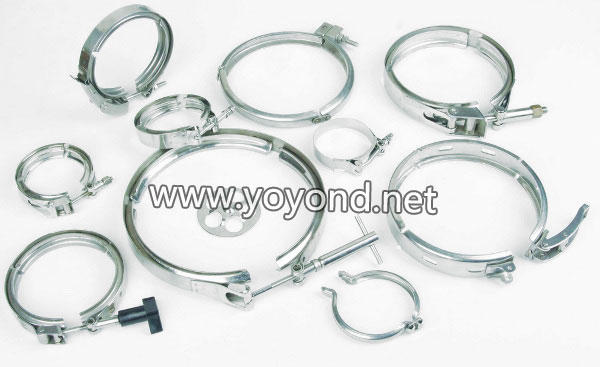

Product Picture: Double Clamp, Press Clamp, Round Clamp
