double_Elbow

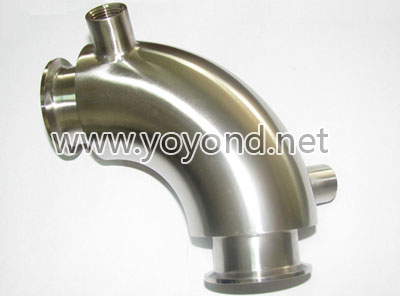

Product Name: Double Elbow

Size: 3"× 2"-1.65mm-NPT Threaded1/2";

Connection: 3A Clamps;

Material: ASTM304, 316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, CNC Machined;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

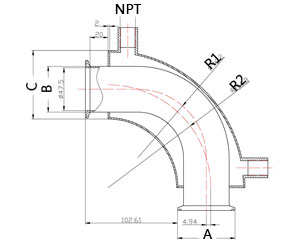

3A Double Elbow type1
double_Elbow
SIze t(mm) A R1 R2 NPT C B
3"× 2" 1.65 64.0 76.2 114.3 1/2" 76.2 50.8

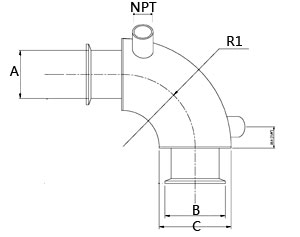

3A Double Elbow type2
double_Elbow
Size t(mm) B C A R1 NPT
3"× 2" 1.65 64.0 76.2(3") 50.8(2") 76.2 1/2"
double_Tee

Product Name: Double Tee

Size: 3"× 2"-1.65mm-NPT Threaded 1/2";

Connection: 3A Clamps;

Material: ASTM304,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

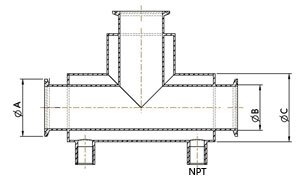

3A Double Tee Type1
double_Tee
Size A B C NPT
3″× 2″ 64.0 50.8 76.2 1/2"

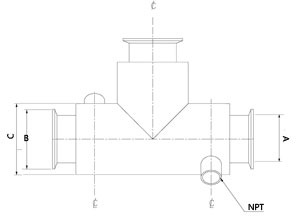

3A Double Tee Type2
double_Tee
Size A B C NPT
3″× 2″ 50.8(2") 64.0 76.2 1/2"

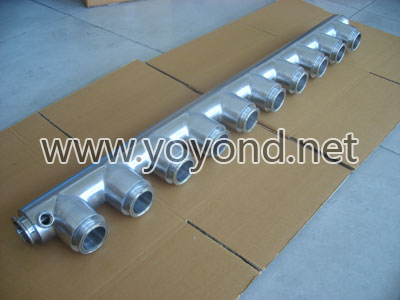

Product Name: Double Tee Manifold 10 Tee

Size: 3"× 2" -2.0mm;

Connection: 3A Clamps;

Material: ASTM304, 316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, CNC Machined;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

3A Double Tee Manifold 10 Tee
double_Tee
Size A B C NPT
3″× 2″ 64.0 76.2(3") 50.8(2") 1/2"
Double_tube

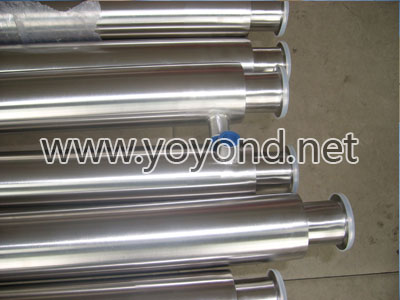

Product Name: Double Tube

Size: 3"× 2"-2.0mm-NPT Threaded 1/2"-6m;

Connection: 3A Clamps;

Material: ASTM304,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, CNC Machined;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

3A Double Tube
double_Tee
Size A B C D(mm) NPT
3″× 2″ 64.0 76.2(3") 50.8(2") 6000 1/2"
