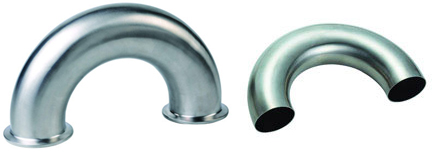

Sanitary 180 Degree Welded/Clamped Elbow

Product Name: Sanitary 180 Degree Welded/Clamped Elbow

Size: 1/2"-4",DN15-DN150,Φ25-102;

Standard: DIN, 3A, IDF, ISO

Material: ASTM304, 316, 316L;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

Surface Treatment: polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Elbow(1.585MB)
DIN 180°Welded Elbow
DIN 180°Welded Elbow
Size L1 D H
DN10 52.0 12.0 26.0
DN15 70.0 18.0 35.0
DN20 80.0 22.0 40.0
DN25 100.0 28.0 50.0
DN32 110.0 34.0 55.0
DN40 120.0 40.0 60.0
DN50 140.0 52.0 70.0
DN65 160.0 70.0 80.0
DN80 180.0 85.0 90.0
DN100 200.0 104.0 100.0
DN125 375.0 129.0 187.5
DN150 450.0 154.0 225.0
3A 180°Welded Elbow
3A 180°Welded Elbow
Size L1 D H
1° 76.2 25.4 38.1
11/2° 114.3 38.1 57.2
2° 152.4 50.8 76.2
2 1/2° 190.5 63.5 95.3
3° 228.6 76.2 114.3
4° 304.8 101.6 152.4
Sanitary Welded Elbow

Product Name: Sanitary Welded Elbow

Size:1/2"-12",DN10-DN300,Φ25-305；

Standard: DIN, 3A, SMS, ISO, IDF, AS,BS4825,BPE and etc.;

Connection: Welded ;

Material: Stainless Steel 304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical, biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN 90°Short Type Elbow
DIN
Size L1 D H
DN10 26.0 12.0 26.0
DN15 35.0 18.0 35.0
DN20 40.0 22.0 40.0
DN25 50.0 28.0 50.0
DN32 55.0 34.0 55.0
DN40 60.0 40.0 60.0
DN50 70.0 52.0 70.0
DN65 80.0 70.0 80.0
DN80 90.0 85.0 90.0
DN100 100.0 104.0 100.0
DN125 187.0 129.0 187.5
DN150 225.0 154.0 225.0
DIN 90°Long Type Elbow
DIN 90°Long Type Elbow
Size L1 D H
DN10 38.0 12.0 26.0
DN15 47.0 18.0 35.0
DN20 52.0 22.0 40.0
DN25 70.0 28.0 50.0
DN32 78.0 34.0 55.0
DN40 85.0 40.0 60.0
DN50 97.0 52.0 70.0
DN65 110.0 70.0 80.0
DN80 118.0 85.0 90.0
DN100 140.0 104.0 100.0
DIN 45°Short Type Elbow
DIN 45°Short Type Elbow
Size L1 D H
DN10 10.7 12.0 26.0
DN15 14.5 18.0 35.0
DN20 16.5 22.0 40.0
DN25 20.7 28.0 50.0
DN32 22.8 34.0 55.0
DN40 24.8 40.0 60.0
DN50 29.0 52.0 70.0
DN65 33.2 70.0 80.0
DN80 37.3 85.0 90.0
DN100 41.5 104.0 100.0
DN125 77.5 129.0 187.5
DN150 93.2 154.0 225.0
3A 2WCL-90°Short Elbow
3A 2WCL-90°Short Elbow
Size L1 D H
1/2° 19.05 12.7 19.05
3/4° 28.5 19.1 28.5
1° 38.1 25.4 38.1
1 1/2° 57.2 38.1 57.2
2° 76.2 50.8 76.2
2 1/2° 95.3 63.5 95.3
3° 114.3 76.2 114.3
4° 152.4 101.6 152.4
6° 228.6 152.4 228.6
3A L2S-90°Long Elbow
3A L2S-90°Long Elbow
Size L1 D H
1° 52.4 25.4 38.1
1 1/2° 74.6 38.1 57.2
2° 103.2 50.8 76.2
2 1/2° 131.8 63.5 95.3
3° 160.3 76.2 114.3
4° 211.1 101.6 152.4
3A 2WK-45°Short Elbow
3A 2WK-45°Short Elbow
Size L1 D H
1° 15.8 25.4 38.1
1 1/2° 23.8 38.1 57.2
2° 31.8 50.8 76.2
2 1/2° 39.7 63.5 95.3
3° 47.6 76.2 114.3
4° 63.5 101.6 152.4
6° 94.7 152.4 228.6
3A L2KS-45°Long Elbow
3A L2KS-45°Long Elbow
Size L1 D H
1° 30.2 25.4 38.1
1 1/2° 41.3 38.1 57.2
2° 58.7 50.8 76.2
2 1/2° 76.2 63.5 95.3
3° 93.7 76.2 114.3
4° 122.2 101.6 152.4

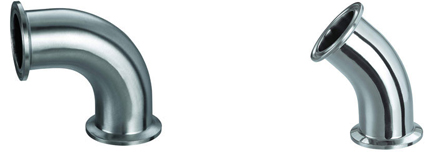

Sanitary Clamped Elbow

Product Name: Sanitary Clamped Elbow

Size:1/2"-6",DN10-DN150,Φ25-152;

>Standard: DIN,3A,SMS,ISO,IDF,AS,BS4852,BPE,and etc.;

Connection: Clamped-Clamped, Welded-Clamped (Single Clamped);

Material: ASTM304,316,316L;

Application: Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical, biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN 90°Clamped Elbow
DIN 90°Clamped Elbow
Size L1 D H
DN15 53.0 34.0 35.0
DN20 58.0 34.0 40.0
DN25 71.0 50.5 50.0
DN32 76.5.0 50.5 55.0
DN40 81.5 50.5 60.0
DN50 91.5 64.0 70.0
DN65 108.0 91.0 80.0
DN80 118.0 106.0 90.0
DN100 128.0 119.0 100.0
DIN 45°Clamped Elbow
DIN 45°Clamped Elbow
Size L1 D H
DN20 34.5  34.0 40.0
DN25 42.2 50.5 50.0
DN32 44.3 50.5 55.0
DN40 46.3 50.5 60.0
DN50 50.5 64.0 70.0
DN65 61.2 91.0 80.0
DN80 65.3 106.0 90.0
DN100 69.5 119.0 100.0
3A 2CMP-90°Clamped Elbow
3A 2CMP-90°Clamped Elbow
Size L1 D H
1° 50.8 50.5 38.1
1 1/2° 69.9 50.5 57.5
2° 88.9 64.0 76.2
2 1/2° 108.0 77.5 95.3
3° 127.0 91.0 114.3
4° 168.3 119.0 152.4
3A 2KMP-45°Clamped Elbow
3A 2KMP-45°Clamped Elbow
Size L1 D H
1° 28.6 50.5 38.1
1 1/2° 36.5 50.5 57.5
2° 44.5 64.0 76.2
2 1/2° 52.4 77.5 95.3
3° 60.3 91.0 114.3
4° 79.4 119.0 152.4
Sanitary Union Elbow

Product Name:

Size:1/2"-4",DN15-DN100,Φ25-102;

Standard: DIN, SMS;

Connection: Threaded (SMS/DIN);

Material: ASTM304,316,316L;

Application: Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical, biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN 90°Union Elbow
DIN 90°Union Elbow
Size L1 L2 G R
DN20 59.0 55.0 RD44×1/6 40.0
DN25 70.0 67.0 RD52×1/6 50.0
DN32 75.0 72.0 RD58×1/6 55.0
DN40 80.0 79.0 RD65×1/6 60.0
DN50 91.0 90.0RD78×1/6 70.0
DN65 103.0 100.0RD95×1/6 80.0
DN80 115.0 113.0RD110×1/4 90.0
DN100 128.0 126.0RD130×1/4 100.0
DIN 90°Union Elbow (Double threaded)
DIN 90°Union Elbow (Double threaded)
Size L1 G R
DN20 59.0 RD44×1/6 40.0
DN25 70.0 RD52×1/6 50.0
DN32 75.0 RD58×1/6 55.0
DN40 80.0 RD65×1/6 60.0
DN50 91.0 RD78×1/6 70.0
DN65 103.0 RD95×1/6 80.0
DN80 115.0 RD110×1/4 90.0
DN100 128.0 RD130×1/4 100.0
DIN 90°Union Elbow (Double Nuts)
DIN 90°Union Elbow (Double Nuts)
Size L1 G R
DN20 55.0 RD44×1/6 40.0
DN25 67.0 RD52×1/6 50.0
DN32 72.0 RD58×1/6 55.0
DN40 79.0 RD65×1/6 60.0
DN50 90.0 RD78×1/6 70.0
DN65 100.0 RD95×1/6 80.0
DN80 113.0 RD110×1/4 90.0
DN100 126.0 RD130×1/4 100.0
