Product Name: Sanitary Pneumatic Angle Seat Valve

This angle seat valve is the new generation of pneumatic angle seat valve researched and developed by our company. It widely used in sanitary pipeline and chemical process, sterilization machine, disinfector, dryer, beer production and etc. Performance and advantage:

Visual position instruction, connect limit switch or emergency manual device.

Easy installation, air controller can rotate by 360 degrees, and limit switch can rotate by 360 degrees. It can convenient install to one to two limit switches.

Advanced air actuator: thicken engineering plastic shell, safe and reliable; low wear piston, large capacity and low air consumption; self-lubricated internal components, maintenance-free.

Long-lived lead stem: valve stem with wedge PTFE sealing, avoiding dirt; Self-lubricated, maintenance-free; stem fixed perfect and can automatically correct location.

Advanced valve body: flow 30% bigger than general angle seat, smaller volume and better fluid flow pattern.

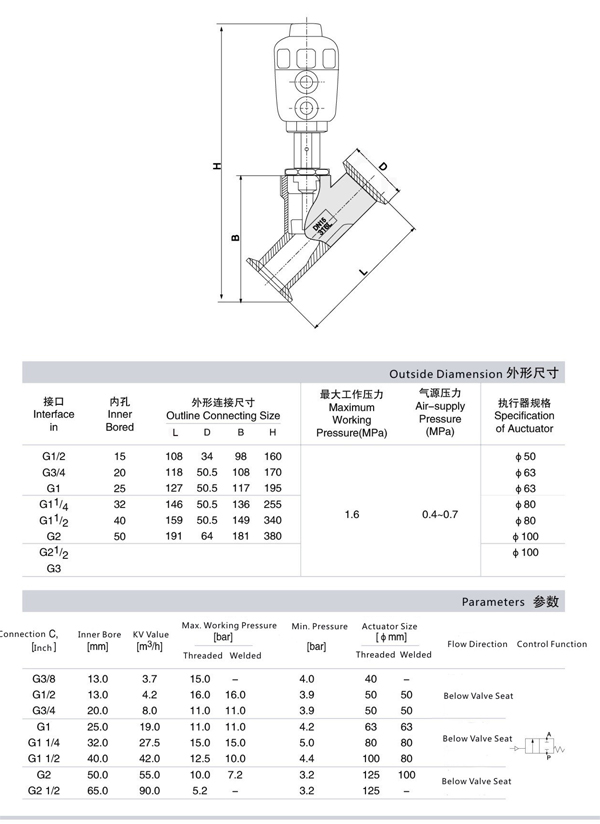

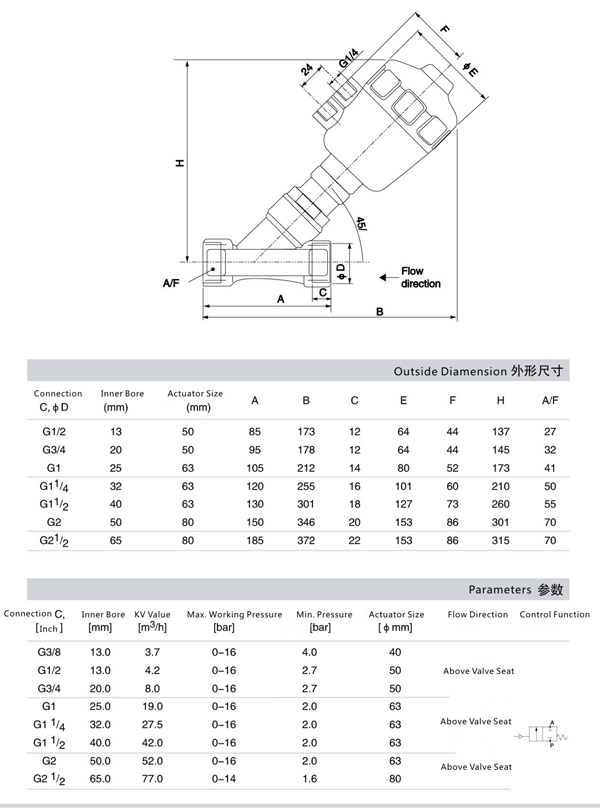

Technical Parameters

Working Pressure: 0-1.6MPa;

Working Temperature: -10℃ ~+200℃;

Body Material: 304 304L 316L;

Sealing Material: PTFE, EPDM;

Air Pressure: 5-8bar;

Connection: female, clamped, flanged.
