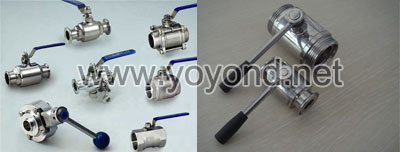

Product Name: Sanitary Ball Valve

Size: DN25-DN150, 1"-4";

Standard: DIN, 3A;

Connection: Welded, Threaded, Clamped, Male, Female;

Material: ASTM304, 316,316L;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

Surface Treatment: Polished ID & OD, ID Polished, OD Polished, Unpolished;

Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Ball_Valve(1.77MB)

Direct way threaded ball valve(DIN)

Size	Rd	Dn	A	H	J	N.W
DN10	Rd28×1/8"	10	95	42	124
DN15	Rd34×1/8"	15	95	42	124
DN20	Rd44×1/6"	19	95	42	124
DN25	Rd52×1/6"	25	100	48	146
DN32	Rd58×1/6"	31	108	50	146
DN40	Rd65×1/6"	37	123	60	185
DN50	Rd78×1/6"	49	136	68	185
DN65	Rd95×1/6"	66	161	85	243
DN80	Rd110×1/6"	81	180	96	243
DN100	Rd130×1/6"	100	204	114	273

Direct way threaded ball valve(SMS)

Size	Rd	Dn	A	H	J	N.W
1/2"	Rd36×1/8"	9.7	95	42	124
3/4"	Rd36×1/8"	16	95	42	124
1"	Rd40×1/6"	22.4	100	48	146
1 1/4"	Rd48×1/6"	28.8	108	60	185
1 1/2"	Rd60×1/6"	35.1	123	60	185
2"	Rd70×1/6"	47.8	136	68	185
2 1/2"	Rd85×1/6"	59.5	150	80	205
3"	Rd98×1/6"	72.2	172	90	243
4"	Rd125×1/4"	97.6	204	114	273

Direct way threaded ball valve(3A)

Size	G	Dn	A	H	J	N.W
1/2"	37.1×1/8"ACME	9.4	100	48	146
3/4"	37.1×1/8"ACME	15.8	100	48	146
1"	37.1×1/8"ACME	22.1	100	48	146
1 1/4"	45.9×1/8"ACME	28.8	108	60	185
1 1/2"	50.6×1/8"ACME	34.8	123	60	185
2"	64.1×1/8"ACME	47.5	136	68	185
2 1/2"	77.6×1/8"ACME	60.2	150	80	205
3"	91.1×1/8"ACME	72.9	172	90	243
4"	119.2×1/6"ACME	97.4	204	114	273

Clamped Ball Valve

Size	D1	D2	A	H	L
3/8s	12.7	34	98	47	37.5
1/2s	16	34	123	58	42.5
3/4	20	50.5	124	60	50
1s	25	50.5	143	80	55
1/4s	32	50.5	143	85	65
1/2s	38	64	200	95	70
2s	50.5	64	200	105	80

ONE PIECE FEMALE BALL VALVE

Size	A	Dn	H	L
1/2"	58.0	9.2	43.5	90.0
3/4"	60.0	12.5	47.0	90.0
1"	72.0	15.0	50.0	103.0
1 1/4"	78.0	20.0	57.0	103.0
1 1/2"	83.0	24.5	69.0	127.0
2"	100.0	32.0	74.5	127.0

TWO-PIECE FEMALE BALL VALVE

Size	A	Dn	H	L
1/2"	65.0	15.0	60.0	130.0
3/4"	75.0	20.0	64.0	130.0
1"	88.0	25.0	71.0	165.O
1 1/4"	102.0	32.0	78.0	165.0
1 1/2"	11O.0	38.0	86.0	190.0
2"	125.0	50.0	95.0	190.0
2 1/2"	162.0	65.0	130.0	250.0
3"	189.0	80.0	148.0	250.0
4"	260.0	100.0	180.0	280.0

THREE-PIECE FEMALE BALL VALVE

Size	Dn	A	H	L
1/2"	15.0	130.0	130.0	72.0
3/4"	20.0	130,	130.0	85.0
1"	25.0	165.0	165.0	90.0
1 1/4"	32.0	165.0	165.0	112.0
1 1/2"	38.0	190.0	190.0	120.0
2"	50.0	190.0	190.0	145.0
2 1/2"/td>	65.0	250.0	250.0	185.0
3"	80.0	250.0	250.0	210.0
4"	100.0	280.0	280.0	268.0

3-PC WELDED BALL VALVE

Size	A	D	H	L
1/2"	72.0	22.7	60.0	130.0
3/4"	85.0	27.5	64.0	130.0
1"	90.0	33.5	71.0	165.0
1 1/4"	112.0	42.0	78.0	165.0
1 1/2"	120.0	48.6	86.0	190.0
2"	145.0	60.5	95.0	190.0
2 1/2"	185.0	76.3	130.0	250.0
3"	215.0	90.0	148.0	250.0
4"	270.0	106.5	173.0	280.0

3-PC CLAMPED BALL VALVE

Size	A	B	H	L
1/2"	75.0	25.0	64.0	125.0
3/4"	90.0	25.0	64.0	125.O
1"	100.0	50.4	83.0	140.0
1 1/4"	110.0	50.4	83.0	140.0
1 1/2"	125.0	50.4	100.0	200.0
2"	150.0	63.9	100.0	200.0
2 1/2"	190.0	77.4"	150.0	250.0
3"	220.O	90.0	161.0	250.0
