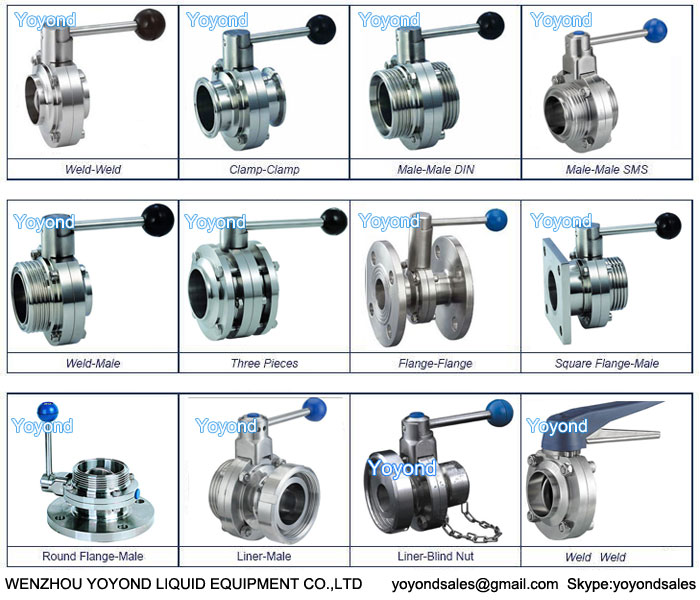

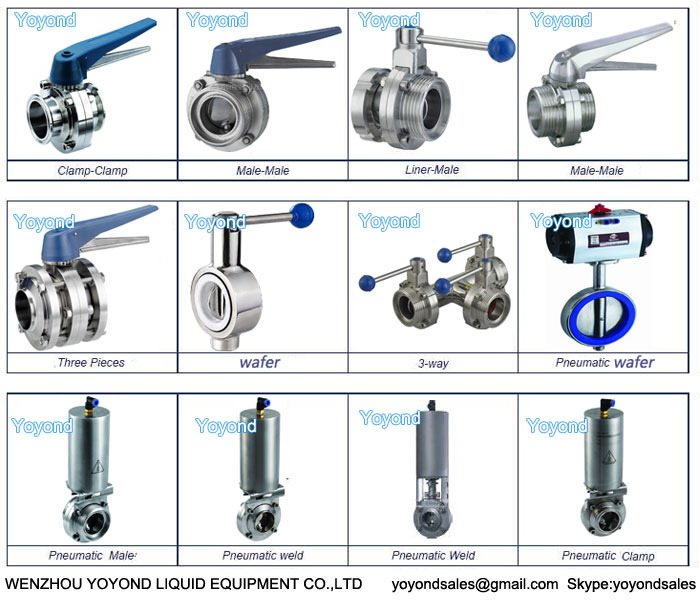

Product Name: Sanitary Butterfly Valve
Size: DN15-DN250, Φ25-204, 1/2"-8";
Standard: DIN, SMS, 3A, ISO,IDF, RJT;
Connection: Welded, Threaded, Clamped, Flanged, Threaded-Welded, Flanged-Welded, Butt Welding;
Material: SS304,SS316L;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Surface Treatment: CNC Machined;
Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)
Date Download:
Butterfly_Valve(2.67MB)
Pulling handle
 |
| K×K |
H |
L |
MATCH BUTTERFLY VALVE |
MATCH WITH BUTTERFLY BALL VAVA |
| 8.0X8.0 |
41.4 |
126.0 |
1/2"-1 1/2" |
DN15-DN40 |
1/2"-1" |
DN15-DN25 |
| 10.0X10.0 |
41.4 |
133.0 |
2" |
DN50 |
1 1/4" |
DN32 |
| 10.0X10.0 |
41.4 |
144.0 |
2 1/2"-3" |
DN65 |
1 1/2" |
DN40 |
| 10.0X10.0 |
43.0 |
160.0 |
3 1/2"-4" |
DN80-DN100 |
2" |
DN50 |
| 10.0X10.0 |
43.0 |
220.0 |
5"-6" |
DN125-DN150 |
|
|
MULTI-POSITION PLASTIC HANDLE
 |
| KXK |
H |
L |
MATCH WITH BUTTERFLY VALVE |
| 8.0X8.0 |
42.0 |
132.0 |
1/2"-1 1/2" |
DN15-DN40 |
| 10.0X10.0 |
46.0 |
155.0 |
2"-4" |
DN50-DN100 |
MULTI-POSITION STAINLESS STEEL HANDLE
 |
| KXK |
H |
L |
MATCH WITH BUTTERFLY VALVE |
WATCH WITH BUTTERFLY-BALL VALVE |
| 8.0X8.0 |
55.0 |
155.0 |
1/2"-1 1/2" |
DN15-DN40 |
1/2"-1 |
DN15-DN25 |
| 10.0X10.0 |
55.0 |
155.0 |
2"-3" |
DN50-DN65 |
1 1/4"-1 1/2" |
DN32-DN40 |
| 11.0X11.O |
55.0 |
155.0 |
3 1/2"-6" |
DN80-DN150 |
2" |
DN50 |
DIN Welded Butterfly Valve
 |
| SIZE |
O |
D |
KXK |
A |
H |
| DN15 |
78.0 |
18.0 |
8.0X8.0 |
50.0 |
39.0 |
| DN20 |
78.0 |
22.0 |
8.0X8.0 |
50.0 |
39.0 |
| DN25 |
78.0 |
28.0 |
8.0X8.0 |
50.0 |
39.0 |
| DN32 |
86.0 |
34.0 |
8.0X8.0 |
50.0 |
43.0 |
| DN40 |
95.0 |
40.0 |
8.0X8.0 |
50.0 |
45.0 |
| DN50 |
108.0 |
52.0 |
10.0X10.0 |
52.0 |
53.0 |
| DN65 |
125.0 |
70.0 |
10.0X10.0 |
56.0 |
62.0 |
| DN80 |
140.0 |
85.0 |
11.0X11.0 |
60.0 |
69.0 |
| DN100 |
160.0 |
104.0 |
11.0X11.0 |
64.0 |
79.0 |
| DN125 |
190.0 |
129.0 |
11.0X11.0 |
80.0 |
92.0 |
| DN150 |
220.0 |
154.0 |
11.0X11.0 |
90.0 |
107.5 |
DIN Clamped Butterfly Valve
 |
| SIZE |
O |
B |
KXK |
A |
H |
| DN15 |
78.0 |
34.0 |
8.0X8.0 |
66.0 |
39.0 |
| DN20 |
78.0 |
34.0 |
8.0X8.0 |
66.0 |
39.0 |
| DN25 |
78.0 |
50.5 |
8.0X8.0 |
66.0 |
39.0 |
| DN32 |
86.0 |
50.5 |
8.0X8.0 |
66.0 |
43.0 |
| DN40 |
95.0 |
50.5 |
8.0X8.0 |
70.0 |
45.0 |
| DN50 |
108.0 |
64.0 |
10.0X10.0 |
76.0 |
51.0 |
| DN65 |
125.0 |
91.0 |
10.0X10.0 |
80.0 |
60.0 |
| DN80 |
140.0 |
106.0 |
11.0X11.0 |
84.0 |
69.5 |
| DN100 |
160.0 |
119.0 |
11.0X11.0 |
104.0 |
77.0 |
| DN125 |
190.0 |
145.0 |
11.0X11.0 |
136.0 |
92.0 |
| DN150 |
220.0 |
167.0 |
11.0X11.0 |
146.0 |
107.0 |
DIN 3-PC Flanged Butterfly Valve
 |
| SIZE |
O |
D |
KXK |
A |
H |
| DN15 |
78.0 |
18.0 |
8.0X8.0 |
100.0 |
39.0 |
| DN20 |
78.0 |
22.0 |
8.0X8.0 |
100.0 |
39.0 |
| DN25 |
78.0 |
28.0 |
8.0X8.0 |
100.0 |
39.0 |
| DN32 |
78.0 |
34.0 |
8.0X8.0 |
100.0 |
39.0 |
| DN40 |
95.0 |
40.0 |
8.0X8.0 |
100.0 |
45.0 |
| DN50 |
108.0 |
52.0 |
10.0X10.0 |
1O4.0 |
51.0 |
| DN65 |
125.0 |
70.0 |
10.0X10.0 |
112.0 |
60.0 |
| DN80 |
140.0 |
85.0 |
11.0X11.0 |
120.0 |
67.0 |
| DN100 |
160.0 |
104.0 |
11.0X11.O |
128.0 |
77.0 |
| DN125 |
190.0 |
129.0 |
11.OX11.O |
160.0 |
92.0 |
| DN150 |
220.0 |
154.0 |
11.OX11.O |
180.0 |
107.0 |
DIN Threaded Butterfly Valve
 |
| SIZE |
O |
G |
KXK |
A |
H |
| DN15 |
78.0 |
RD34X1/8 |
8.0X8.0 |
66.0 |
39.0 |
| DN20 |
78.0 |
RD44X1/6 |
8.0X8.0 |
66.0 |
39.0 |
| DN25 |
78.0 |
RD52X1/6 |
8.0X8.0 |
66.0 |
39.0 |
| DN32 |
86.0 |
RD58X1/6 |
8.0X8.0 |
70.0 |
43.0 |
| DN40 |
95.0 |
RD65X1/6 |
8.0X8.0 |
74.0 |
45.0 |
| DN50 |
108.0 |
RD78X1/6 |
10.0X10.0 |
78.0 |
53.0 |
| DN65 |
125.0 |
RD95X1/6 |
10.0X10.0 |
64.0 |
62.0 |
| DN80 |
140.0 |
RD110X1/4 |
11.0X11.0 |
90.0 |
69.5 |
| DN100 |
160.0 |
RD130X1/4 |
11.0X11.0 |
104.0 |
79.5 |
| DN125 |
190.0 |
RD160X1/4 |
11.0X11.0 |
130.0 |
92.5 |
| DN150 |
220.0 |
RD190X1/4 |
11.0X11.0 |
150.0 |
107.5 |
DIN Threaded-Welded Butterfly Valve
 |
| SIZE |
O |
G |
D |
KXK |
A |
H |
| DN15 |
78.0 |
RD34X1/8 |
18.0 |
a.0xa.o |
58.0 |
39.0 |
| DN20 |
78.0 |
RD44X1/6 |
22.0 |
a.0xa.o |
58.0 |
39.0 |
| DN25 |
78.0 |
RD52X1/6 |
28.0 |
a.o.a.o |
58.0 |
39.0 |
| DN32 |
86.0 |
RD58X1/6 |
34.0 |
a.oxa.o |
60.0 |
43.0 |
| DN40 |
95.0 |
RD65X1/6 |
40.0 |
a.oxa.o |
62.0 |
45.0 |
| DN50 |
108.0 |
RD78X1/6 |
52.0 |
10.0x10.0 |
64.0 |
53.0 |
| DN65 |
125.0 |
RD95X1/6 |
70.0 |
10.0x10.0 |
70.0 |
62.0 |
| DN80 |
140.0 |
RD110X1/4 |
85.0 |
11.0x11.0 |
74.0 |
69.0 |
| DN100 |
160.0 |
RD130X1/4 |
104.0 |
11.0x11.0 |
86.0 |
79.0 |
| DN125 |
190.0 |
RD160X1/4 |
129.0 |
11.0x11.0 |
105.0 |
92.0 |
| DN150 |
220.0 |
RD190X1/4 |
154.0 |
11.0x11.0 |
120.0 |
107.0 |
DIN Screw-Nut Butterfly Valve
 |
| Size |
O |
G |
kxk |
A |
H |
| DN15 |
78.0 |
RD34X1/8 |
a.oxa.o |
71.0 |
39.0 |
| DN20 |
78.0 |
RD44X1/6 |
a.oxa.o |
72.0 |
39.0 |
| DN25 |
78.0 |
RD52X1/6 |
a.oxa.o |
75.0 |
39.0 |
| DN32 |
86.0 |
RD58X1/6 |
a.oxa.o |
77.0 |
43.0 |
| DN40 |
95.0 |
RD65X1/6 |
a.oxa.o |
81.0 |
45.0 |
| DN50 |
108.0 |
RD78X1/6 |
10.0x10.0 |
84.0 |
53.0 |
| DN65 |
125.0 |
RD95X1/4 |
10,0x10,o |
90.0 |
62.0 |
| DN80 |
140.0 |
RD110X1/4 |
11.0x11.0 |
98.0 |
69.0 |
| DN100 |
160.0 |
RD13OX1/4 |
11.0x11.0 |
110.0 |
79.0 |
| DN125 |
190.0 |
RD160X1/4 |
11.0x11.0 |
138.0 |
92.0 |
| DN15O |
220.0 |
RD190X1/4 |
11.0x11.0 |
154.0 |
107.0 |
