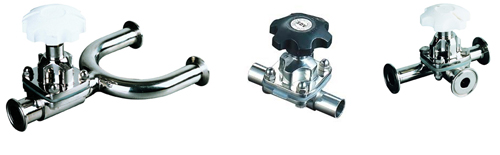

Product Name: Sanitary Diaphragm Valve

Size: DN10-DN150, 1"-4";

Standard: DIN, SMS, 3A, ISO/IDF, RJT;

Connection: Welded, Threaded, Clamped;

Material: ASTM304, 316,316L;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

Surface Treatment: Mirror Polished ID & OD;

Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Diaphragm_Valve(0.744MB)
DIN Welded Diaphragm Valve
DIN Welded Diaphragm Valve
SIZE A D H
DN15 100.0 18.0 88.99
DN25 125.0 28.0 110/123
DN32 140.0 34.0 129/138
DN40 150.0 40.0 139/159
DN50 180.0 52.0 159/186
DIN Clamped Diaphragm Valve
DIN Clamped Diaphragm Valve
SIZE A B H
DN15 107.0 34.0 88/99
DN20 116.0 34.0 91/102
DN25 125.0 50.5 110/123
DN32 146.0 50.5 129/138
DN40 158.0 50.5 139/159
DN50 190.0 64.0 159/186
DIN Threaded Diaphragm Valve
DIN Threaded Diaphragm Valve
SIZE A B H
DN20 153.0 RD44X1/6 91/102
DN25 165.0 RD52X1/6 110/123
DN32 180.0 RD58X1/6 129/138
DN40 190.0 RD65X1/6 139/159
DN50 222.0 RD78X1/6 159/186
U Tee Clamped Diaphragm Valve
U Tee Clamped Diaphragm Valve
SIZE A B H
1" 255.0 50.5 110/123
1 1/4" 303.0 50.5 129/138
1 1/2" 319.0 50.5 139/159
2" 388.0 64.0 159/186
Diaphragm Valve with Tee
Diaphragm Valve with Tee
size a b h
1" 129.0 50.5 110/123
1 1/4" 147.0 50.5 129/138
1 1/2" 159.0 50.5 139/159
2" 190.0 64.0 159/186
