Product Name: Polished 45° Short Radius Elbows
Item No:3A-2WK;
Size: 1/2"-6"tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | 0.518 | 13.16 | |
| 3/4" | 19.01 | 0.065 | 1.65 | 0.937 | 23.8 | |
| 1" | 25.4 | 0.065 | 1.65 | 0.622 | 15.8 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 0.937 | 23.8 | |
| 2" | 50.8 | 0.065 | 1.65 | 1.250 | 31.75 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 1.559 | 39.6 | |
| 3" | 76.2 | 0.065 | 1.65 | 1.874 | 47.6 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.10 | 2.500 | 63.5 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | 3.752 | 95.3 | |
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: 45° Long Radius Elbows
Item No:3A-2KS;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | 1.189 | 30.2 | |
| 3/4" | 19.01 | 0.065 | 1.65 | 1.189 | 30.2 | |
| 1" | 25.4 | 0.065 | 1.65 | 1.189 | 30.2 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 1.626 | 41.3 | |
| 2" | 50.8 | 0.065 | 1.65 | 2.311 | 58.7 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 3.000 | 76.2 | |
| 3" | 76.2 | 0.065 | 1.65 | 3.889 | 93.7 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 4.811 | 122.2 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | 6.228 | 158.2 | |
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||

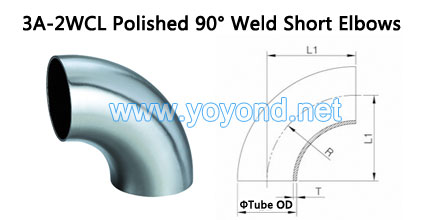

Product Name: 90° Short Radius Elbows
Item No:3A-2WC/2WCL;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | 0.752 | 19.1 | |
| 3/4" | 19.01 | 0.065 | 1.65 | 1.125 | 28.6 | |
| 1" | 25.4 | 0.065 | 1.65 | 1.500 | 38.1 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 2.252 | 57.2 | |
| 2" | 50.8 | 0.065 | 1.65 | 3.000 | 76.2 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 3.75 | 95.3 | |
| 3" | 76.2 | 0.065 | 1.65 | 4.5 | 114.3 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 6.0 | 152.4 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | 9.0 | 228.6 | |
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: 90° Long Radius Elbows
Item No:3A-2S/L2S;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | 1.314 | 33.4 | |
| 3/4" | 19.01 | 0.065 | 1.65 | 1.688 | 42.9 | |
| 1" | 25.4 | 0.065 | 1.65 | 2.063 | 52.4 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 2.937 | 74.6 | |
| 2" | 50.8 | 0.065 | 1.65 | 4.063 | 103.2 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 5.189 | 131.8 | |
| 3" | 76.2 | 0.065 | 1.65 | 6.330 | 160.8 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 8.311 | 211.1 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | 11.50 | 292.1 | |
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: Polished Short Tee
Item No:3A-7WWW;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | |||
| 3/4" | 19.01 | 0.065 | 1.65 | |||
| 1" | 25.4 | 0.065 | 1.65 | 1.125 | 28.6 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 1.657 | 42.1 | |
| 2" | 50.8 | 0.065 | 1.65 | 2.062 | 52.4 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 2.342 | 59.5 | |
| 3" | 76.2 | 0.065 | 1.65 | 2.594 | 65.9 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 3.437 | 87.3 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | |||
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: Polished Long Tee
Item No:3A-7W;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | 1.874 | 47.6 | |
| 3/4" | 19.01 | 0.065 | 1.65 | 1.874 | 47.6 | |
| 1" | 25.4 | 0.065 | 1.65 | 1.874 | 47.6 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 2.251 | 57.2 | |
| 2" | 50.8 | 0.065 | 1.65 | 3.0 | 76.2 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 3.0 | 76.2 | |
| 3" | 76.2 | 0.065 | 1.65 | 3.251 | 82.6 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 3.874 | 98.4 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | 5.625 | 142.9 | |
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: Polished Short Cross
Item No:3A-9WWW;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | |||
| 3/4" | 19.01 | 0.065 | 1.65 | |||
| 1" | 25.4 | 0.065 | 1.65 | 1.125 | 28.6 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 1.657 | 42.1 | |
| 2" | 50.8 | 0.065 | 1.65 | 2.062 | 52.4 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 2.342 | 59.5 | |
| 3" | 76.2 | 0.065 | 1.65 | 2.594 | 65.9 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 3.437 | 87.3 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | |||
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: Polished Long Cross
Item No:3A-9W;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube OD | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 1/2" | 12.7 | 0.065 | 1.65 | |||
| 3/4" | 19.01 | 0.065 | 1.65 | |||
| 1" | 25.4 | 0.065 | 1.65 | 1.874 | 47.6 | |
| 1-1/2" | 38.1 | 0.065 | 1.65 | 2.251 | 57.2 | |
| 2" | 50.8 | 0.065 | 1.65 | 3.0 | 76.2 | |
| 2-1/2" | 63.5 | 0.065 | 1.65 | 3.0 | 76.2 | |
| 3" | 76.2 | 0.065 | 1.65 | 3.251 | 82.6 | |
| 3-1/2" | 88.9 | 0.065 | 1.65 | |||
| 4" | 101.6 | 0.083 | 2.1 | 3.874 | 98.4 | |
| 4-1/2" | 114.3 | |||||
| 5" | 127 | |||||
| 6" | 152.4 | 0.109 | 2.77 | |||
| 8" | 203.2 | |||||
| 10" | 254 | |||||
| 12" | 304.8 | |||||
Notes: • R=1-1/2 O.D ; |
||||||

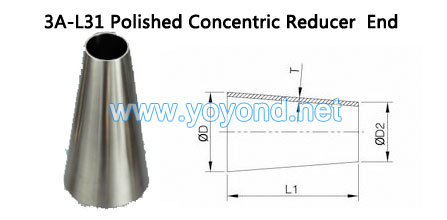

Product Name: Polished Concentric Reducer Weld End
Item No:3A-L31;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube ΦD x ΦD2 | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 3/4"X1/2" | 19 X 12.7 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 1" X 1/2" | 25.4 x12.7 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 1.5" X 1/2" | 38.1x12.7 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2" X 1/2" | 50.8x12.7 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 1" X 3/4" | 25.4x19 | 0.065 | 1.65 | 6.0 | 152.4 | |
| 1.5" X 3/4 " | 38.1x19 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 1.5" X 1.0 " | 38.1x25.4 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 2.0" X 1.0 " | 50.8x25.4 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2.0" X 1.5 " | 50.8x38.1 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 2.5" X 1.0 " | 63.5x25.4 | 0.065 | 1.65 | 6.0 | 152.4 | |
| 2.5" X 1.5 " | 63.5x38.1 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2.5" X 2.0 " | 63.5x50.8 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 3.0" X 1.0 " | 76.2x25.4 | 0.065 | 1.65 | 8.0 | 203.2 | |
| 3.0" X 1.5 " | 76.2x38.1 | 0.065 | 1.65 | 6.0 | 152.4 | |
| 3.0" X 2.0 " | 76.2x50.8 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 3.0" X 2.5 " | 76.2x63.5 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 4.0" X 1.5 " | 101.6x38.1 | 0.083 | 2.1 | 10.0 | 254.0 | |
| 4.0" X 2.0 " | 101.6x50.8 | 0.083 | 2.1 | 8.0 | 203.2 | |
| 4.0" X 2.5 " | 101.6x63.5 | 0.083 | 2.1 | 6.0 | 152.4 | |
| 4.0" X 3.0 " | 101.6x76.2 | 0.083 | 2.1 | 4.0 | 101.6 | |
| 6.0" X 2.0 " | 152.4x50.8 | 0.109 | 2.77 | 5.5 | 139.7 | |
| 6.0" X 3.0 " | 152.4x76.2 | 0.109 | 2.77 | 5.5 | 139.7 | |
| 6.0" X 4.0 " | 152.4x101.6 | 0.109 | 2.77 | 5.5 | 139.7 | |
Notes: • R=1-1/2 O.D ; |
||||||
Product Name: Polished Eccentric Reducer Weld End
Item No:3A-L32/32W;
Size: 1/2"-6" tube O.D ;
Standard: 3A ;
Material: 304 stainless steel & 316 stainless steel;
Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;
Finish: ID/OD polish is 240 Grit or mill finish;
|
||||||
| Tube ΦD x ΦD2 | T | L1 | Part Number | |||
|---|---|---|---|---|---|---|
| inch | mm. | inch | mm. | inch | mm. | |
| 3/4"X1/2" | 19 X 12.7 | 0.065 | 1.65 | 2.0 | 25.4 | |
| 1" X 1/2" | 25.4 x12.7 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 1.5" X 1/2" | 38.1x12.7 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2" X 1/2" | 50.8x12.7 | 0.065 | 1.65 | 2.0 | 152.4 | |
| 1" X 3/4" | 25.4x19 | 0.065 | 1.65 | 6.0 | 25.4 | |
| 1.5" X 3/4 " | 38.1x19 | 0.065 | 1.65 | 4.0 | 76.2 | |
| 1.5" X 1.0 " | 38.1x25.4 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 2.0" X 1.0 " | 50.8x25.4 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2.0" X 1.5 " | 50.8x38.1 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 2.5" X 1.0 " | 63.5x25.4 | 0.065 | 1.65 | 6.0 | 152.4 | |
| 2.5" X 1.5 " | 63.5x38.1 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 2.5" X 2.0 " | 63.5x50.8 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 3.0" X 1.0 " | 76.2x25.4 | 0.065 | 1.65 | 8.0 | 203.2 | |
| 3.0" X 1.5 " | 76.2x38.1 | 0.065 | 1.65 | 6.0 | 152.4 | |
| 3.0" X 2.0 " | 76.2x50.8 | 0.065 | 1.65 | 4.0 | 101.6 | |
| 3.0" X 2.5 " | 76.2x63.5 | 0.065 | 1.65 | 2.0 | 50.8 | |
| 4.0" X 1.5 " | 101.6x38.1 | 0.083 | 2.1 | 10.0 | 254.0 | |
| 4.0" X 2.0 " | 101.6x50.8 | 0.083 | 2.1 | 8.0 | 203.2 | |
| 4.0" X 2.5 " | 101.6x63.5 | 0.083 | 2.1 | 6.0 | 152.4 | |
| 4.0" X 3.0 " | 101.6x76.2 | 0.083 | 2.1 | 4.0 | 101.6 | |
| 6.0" X 2.0 " | 152.4x50.8 | 0.109 | 2.77 | 5.5 | 139.7 | |
| 6.0" X 3.0 " | 152.4x76.2 | 0.109 | 2.77 | 5.5 | 139.7 | |
| 6.0" X 4.0 " | 152.4x101.6 | 0.109 | 2.77 | 5.5 | 139.7 | |
Notes: • R=1-1/2 O.D ; |
||||||
