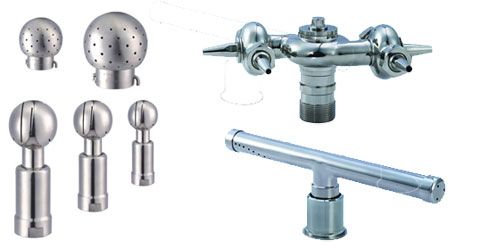

Product Name: Sanitary Cleaning Ball/Cleaning Machine
Material: AISI304 or AISI316L;
Application: Dairy, beer, food, beverage, pharmaceutical tanks' cleaning;
Connection: Threaded, Clamped, Welded, Bolted;
Type: Nozzle Tank Washing Machine, Rotary Cleaning Ball, Fixed Cleaning Ball (Spray Cleaning Ball);
Finish: ID Mechanical Polishing Ra≤0.4-0.8μm, OD Mirror Polishing (BA) Ra≤0.8μm;
Spray Angle: 360°, 90°.
Date Download:
Cleaning_Ball(0.488MB)
Threaded Rotary Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
140.0 |
53.0 |
|
| 1 1/4" |
160.0 |
53.0 |
|
| 1 1/2" |
170.0 |
53.0 |
|
| 2" |
192.0 |
63.0 |
|
| 2-1/2 |
220.0 |
76.0 |
|
Clamped Rotary Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
138.0 |
53.0 |
|
| 1 1/4" |
138.0 |
53.0 |
|
| 1 1/2" |
138.0 |
53.0 |
|
| 2" |
168.0 |
63.0 |
|
| 2-1/2 |
190.0 |
76.0 |
|
Bolted Rotary Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
135.0 |
53.0 |
|
| 1 1/4" |
137.0 |
53.0 |
|
| 1 1/2" |
137.0 |
53.0 |
|
| 2" |
168.0 |
63.0 |
|
| 2-1/2 |
190.0 |
76.0 |
|
Welded Rotary Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
143.0 |
53.0 |
|
| 1 1/4" |
145.0 |
53.0 |
|
| 1 1/2" |
145.0 |
53.0 |
|
| 2" |
180.0 |
63.0 |
|
| 2-1/2 |
200.0 |
76.0 |
|
Rotary Cleaning Ball Technical Parameter
| Size |
Pressure(bar) |
Cleaning radius(m) |
Flow(m3/h) |
| 1"-1 1/2" |
2 |
1.25 |
12 |
| 2" |
2 |
1.5 |
38 |
| 2.5" |
2 |
2.0 |
38 |
Threaded Fixed Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
72.0 |
63.0 |
|
| 1 1/4" |
85.0 |
76.0 |
|
| 1 1/2" |
87.0 |
76.0 |
|
| 2 |
102.0 |
91.0 |
|
Clamped Fixed Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
80.0 |
63.0 |
|
| 1 1/4" |
93.0 |
76.0 |
|
| 1 1/2" |
93.0 |
76.0 |
|
| 2" |
108.0 |
91.0 |
|
| 2-1/2 |
115.0 |
100.0 |
|
Welded Fixed Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
72.0 |
53.0 |
|
| 1 1/2" |
85.0 |
63.0 |
|
| 2" |
87.0 |
91.0 |
|
| 2-1/2 |
102.0 |
100.0 |
|
Bolted Fixed Cleaning Ball
 |
| Size |
A |
Q |
|
| 1" |
95.0 |
63.0 |
|
| 1 1/2" |
110.0 |
76.0 |
|
| 2" |
125.0 |
91.0 |
|
| 2-1/2 |
135.0 |
100.0 |
|
Fixed Cleaning Ball Technical Parameter
| Size |
Pressure(bar) |
Cleaning radius(m) |
Flow(m3/h) |
| 1" |
2.5 |
1.0-1.25 |
17/10 |
| 1 1/4" -1 1/2" |
2.5 |
1.25-1.75 |
23/17 |
| 2" |
2.5 |
2.0-3.0 |
55/38 |
| 2 1/2 " |
2.5 |
3.0-3.5 |
58/41 |
Threaded Rotary Cleaning Machine
 |
| Size |
A |
H |
|
| 1" |
118.0 |
165.0 |
|
| 1 1/2" |
142.0 |
189.0 |
|
| 2" |
145.0 |
191.0 |
|
Bolted Rotary Cleaning Machine (Double Circulate Rotary Cleaning Machine)
 |
| Size |
A |
Q |
|
| 1" |
118.0 |
175.0 |
|
| 1 1/2" |
142.0 |
200.0 |
|
| 2" |
145.0 |
205.0 |
|
Rotary Cleaning Machine Technical Parameter
| Size |
Pressure(bar) |
Cleaning radius(m) |
Flow(m3/h) |
| 1" |
1.5-2.0 |
2.0-3.0 |
23 |
| 1 1/2" |
1.8-2.5 |
2.5-3.0 |
38 |
| 2" |
2.5-3.0 |
3.5-4.0 |
60 |
