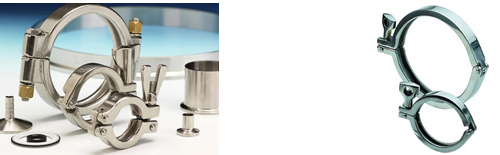

Product Name: Stainless Steel Clamp

Size:1"-12",DN10-DN300;

Connection: Clamped;

Material:ASTM304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished, Tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Related Products:13MHHM,13MHH,13SF,13MHHH,13CS,13MHP,13IS,13IU,13MHHS；

Date Download:Clamp(0.377MB)

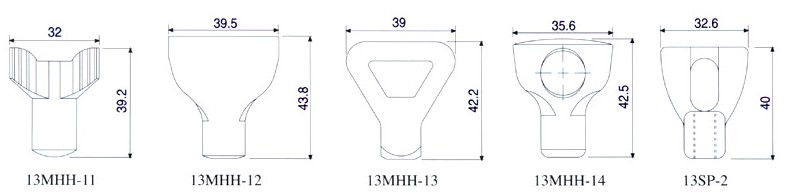

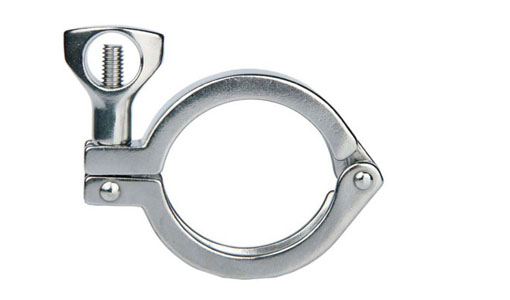

13MHHM Heavy Duty Single Pin Clamp(13MHHM HEAVY DUTY SIGLE PIN CLAMP)
13MHH HEAVY DUTY SIGLE PIN CLAMP
Size
(Tube OD)		 Part Number Service Pressure Rating at 70°F Service Pressure Rating at 250°F B
304 316
1/2" - 3/4" 13MHHM-.50-304 13MHHM-.50-316 1500 1200 1.062
1" - 1 1/2" 13MHHM-1-304 13MHHM-1-316 500 300 2.122
2" 13MHHM-2-304 13MHHM-2-316 450 250 2.654
2 1/2" 13MHHM-2.5-304 13MHHM-2.5-316 400 200 3.185
3" 13MHHM-3-304 13MHHM-3-316 350 175 3.717
4" 13MHHM-4-304 13MHHM-4-316 300 150 4.820
5" 13MHHM-5-304 13MHHM-5-316 225 100 5.820
6" 13MHHM-6-304 13MHHM-6-316 150 75 6.695
8" 13MHHM-8-304 13MHHM-8-316 100 50 8.695
10" 13MHHM-10-304 13MHHM-10-316 75 40 10.695
12" 13MHHM-12-304 13MHHM-12-316 50 25 12.695

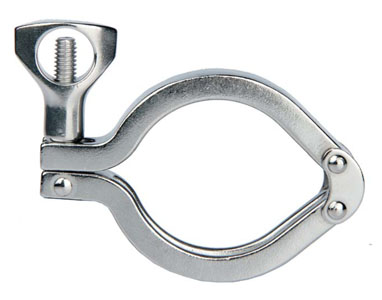

Double Pin Heavy Duty Clamp (13MHHM-DP)
Double Pin Heavy Duty Clamp (13MHHM-DP) Double Pin Heavy Duty Clamp (13MHHM-DP)
Size
(Tube OD)		 Part Number Service Pressure Rating at 70°F Service Pressure Rating at 250°F A B
1/2"-3/4" 13MHHM-DP-.50-304 1500 1200 0.747 1.125
1"- 1-1/2" 13MHHM-DP-1-304 500 300 1.748 2.122
2" 13MHHM-DP-2-304 450 250 2.276 2.654
2 1/2" 13MHHM-DP-.2.5-304 400 200 2.811 3.185
3" 13MHHM-DP-3-304 350 175 3.307 3.717
4" 13MHHM-DP-4-304 300 150 4.331 4.820
6" 13MHHM-DP-6-304 150 75 6.118 6.695
8" 13MHHM-DP-8-304 100 50 8.118 8.695
10" 13MHHM-DP-10-304 75 40 10.12 10.695
12" 13MHHM-DP-12-304 60 30 12.12 12.695
13MHHM Heavy Duty Double Pin Clamp
13MHHM Heavy Duty Double Pin Clamp
SIZE A B
1/2".3/4" 20 28
1.5" 43.6 53.6
2.0" 57 67
2.5" 706 80.6
3.0" 84 94
4.0" 112 122
6.0" 155 170
8.0" 205 220.8

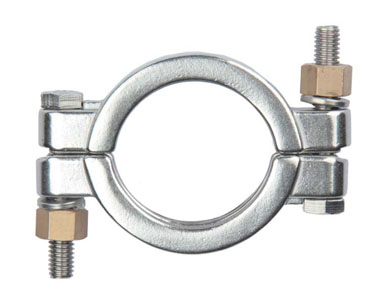

13MHP High Pressure Clamp
13MHP High Pressure Clamp13MHP High Pressure Clamp

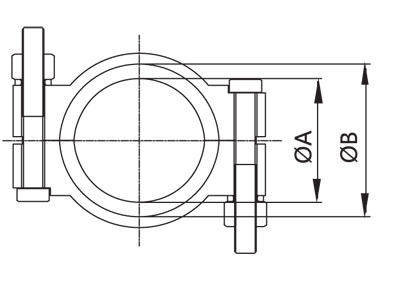

Size
(Tube OD)		 Part NumberService Pressure Rating at 70°F Service Pressure Rating at 250°F   A B
304
1/2" - 3/4" 13MHP-.50-304 1500  1200  0.688  1.062
1" - 1 1/2" 13MHP-1-304  1500  1200 1.748  2.122
2" 13MHP-2-304 1000  800  2.276  2.654
2 1/2" 13MHP-2.5-304 1000   800 2.811  3.185
3" 13MHP-3-304  1000  800 3.307  3.717
4" 13MHP-4-304 800  600 4.331 4.820
5" 13MHP-5-304 550 400 5.331 5.820
6" 13MHP-6-304 300 200 6.118 6.695
8" 13MHP-8-304 250 150 8.118 8.695
10" 13MHP-10-304  200 125   10.118 10.695
12" 13MHP-12-304  150 100   12.118 12.695
13MHHS 3-pc Clamp
13MHHS 3-pc Clamp
SIZE A B
1-1/2" 54 80
2.0" 67.5 94
2-1/2" 80.9 109
3.0" 84.4 126
4.0" 122.4 154
13IS I-LINE CLAMP
13IS I-LINE CLAMP
SIZE A B
1-1/2" 53.4 83.8
2.0" 72.2 111
2-1/2" 88.1 121.4
3.0" 102.4 136.1
4.0" 127.8 162
6.0" 195.3 242.1
13IU I-LINE BOLT CLAMP
13IUI-LINE BOLT CLAMP
SIZE A B
1-1/2" 53.4 83.8
2.0" 72.2 111
2-1/2" 88.1 121.4
3.0" 102.4 136.1
4.0" 127.8 162
6.0" 195.3 242.1
