WENZHOU YOYOND LIQUID EQUIPMENT CO.,LTD

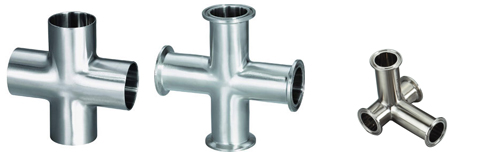

Product Name: Sanitary L Type Cross/Clamped Cross/Welded Cross

Size:1"-4",DN25-DN100,Φ19-102;

Standard: DIN,3A,SMS,ISO,IDF,AS,BS4825,BPE;

Connection: Welded, Clamped;

Material: ASTM304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Cross(0.349MB)

DIN Welded Cross

Size	L1	D
DN25	50.0	28.0
DN32	55.0	34.0
DN40	60.0	40.0
DN50	70.0	52.0
DN65	80.0	70.0
DN80	90.0	85.0
DN100	100.0	104.0

SMS Welded Cross

Size	L1	L2	D
25	55.0	15.0	25.4
38	70.0	21.0	38.1
51	82.0	29.0	50.8
63.5	105.0	36.0	63.5
76.2	110.0	44.0	76.2
104	150.0	58.0	104.0

3A L9WWWW- Long Type Welded Cross

SIze	(long)L1	D
1″	47.6	25.4
1 1/2″	57.2	38.1
2″	76.2	50.8
2 1/2″	76.2	63.5
3″	82.6	76.2
4″	98.1	101.6

3A L9W Short Type Welded Cross

SIze	(short)L1	D
1″	28.6	25.4
1 1/2″	42.1	38.1
2″	52.4	50.8
2 1/2″	54.5	63.5
3″	65.9	76.2
4″	87.3	101.6

3A 9MP- Clamped Cross

Size	L1	B
1″	60.3	50.5
1 1/2″	69.9	50.5
2″	88.9	64.0
2 1/2″	88.9	91.0
3″	95.3	106.0
4″	114.3	119.0
