Product Name: Sanitary Clamped/Welded Tee

Size: 3/4"-2",DN20-DN50,Φ19-51;

Standard: DIN, 3A, SMS, ISO, IDF, AS, BS4825, BPE;

Connection: Welded-Clamped, Clamped-Clamped, Welded-Welded;

Material:ASTM304,316,316L;

Application: Dairy,Beer,Food,Beverage,Chemical,Pharmaceutical,Cosmetic and Biology engineering industry;

Surface Treatment: Polished ID & OD, ID Polished, OD Polished, Unpolished,Tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Tee(0.915MB)
3A U Type Clamped Tee
3A U Type Clamped Tee
Size-D1 D2 A B
2  25.4 200 170
2 51 200 170
2 38 200 170
2 25.4 180 150
1-1/2 19 180 150
1-1/2 25.4 145 125
1-1 19 145 125
3/4 19 135 100

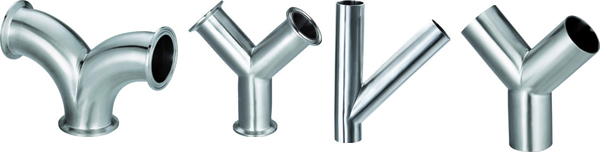

Product Name: Sanitary Y Type Tee

Size: 1/2"-6",DN25-DN150,Φ12-152;

Standard: 3A, ISO, DIN, IDF;

Connection: Welded, Clamped;

Material:ASTM304,316,316L;

Application: Dairy,Beer,Food,Beverage,Chemical,Pharmaceutical,Cosmetic and Bio-Tech industry;

Surface Treatment: Polished ID & OD, ID Polished, OD Polished, Unpolished, Tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

3A L28B-7 True Y
3A L28B-7 True Y
Size A
1/2° 50.8
3/4° 50.8
1° 76.2
1 1/2° 76.2
2° 101.6
2 1/2° 127
3° 152.4
4° 203.2
6° 203.2
3A 28BMP Y Clamped True Y
3A 28BMP Y Clamped True Y
Size/Tube OD A
1/2″ 63.5
3/4″ 63.5
1″ 88.9
1-1/2″ 88.9
2″ 114.3
2-1/2″ 139.7
3″ 165.1
4″ 218.9
6″ 222.2
3A L28A-745°Lateral
3A L28A-745°Lateral
Size A B C
1/2° 152.4 127.0 25.4
3/4° 152.4 127.0 25.4
1° 152.4 127.0 25.4
1 1/2° 187.3 173.1 30.2
2° 222.2 180.9 41.3
2 1/2° 254 215.9 38.1
3° 273.1 225.4 47.6
4° 325.5 273.1 52.4
6° 419.1 317.5 101.6
3A L28AR-745°Lateral - Reducing
3A L28AR-745°Lateral - Reducing
Size A B C
1 1/2×1 187.3 157.2 30.2
2×1 222.2 181.0 41.3
2×1 1/2 222.2 181.0 41.3
2 1/2×1 254 215.9 38.1
2 1/2×1 1/2 254 215.9 38.1
2 1/2×2 254 215.9 38.1
3×1 273.1 225.4 47.6
3×1 1/2 273.1 225.4 47.6
3×2 273.1 225.4 47.6
 3×2 1/2 273.1 225.4 47.6
4×1 325.5 273.1 52.4
4×1 1/2 325.5 273.1 52.4
4×2 274.7 273.1 52.4
4×2 1/2 325.5 273.1 52.4
4×3 325.5 273.1 52.4
3A R Tee
3A R Tee
Size A
1° 65.0
1 1/2° 85.0
2° 110.0
2 1/2° 135.0
3° 155.0
4° 195.0

Product Name: Sanitary Welded Tee

Size:1/2"-12",DN10-DN300,Φ19-305;

Standard: DIN, 3A, SMS, ISO, IDF, AS, BS4825, BPE;

Connection: welded;

Material: ASTM304, 316, 316L;

Application: Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical, biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN Long Type Welded Tee
DIN Long Type Welded Tee
Size L1 D
DN10 26.0 12.0
DN15 35.0 18.0
DN20 40.0 22.0
DN25 50.0 28.0
DN32 55.0 34.0
DN40 60.0 40.0
DN50 70.0 52.0
DN65 80.0 70.0
DN80 90.0 85.0
DN100 100.0 104.0
DN125 187.0 129.0
DN150 225.0 154.0
3A L7WWW- Short Type Welded Tee
3A L7WWW- Short Type Welded Tee
Size L1 D
1° 28.6 25.4
1 1/2° 42.05 38.1
2° 52.35 50.8
2 1/2° 59.55 63.5
3° 65.9 76.2
4° 87.35 101.6
3A 7W- Long Type Welded Tee
Size L1 D
1° 47.6 25.4
1 1/2° 57.2 38.1
2° 76.2 50.8
2 1/2° 76.2 63.5
3° 82.6 76.2
4° 98.4 101.6
SMS Long Type Welded Tee
SMS Long Type Welded Tee
Size L1 D
25 55.0 25.0
38 70.0 38.0
51 82.0 51.0
63 105.0 63.5
76 110.0 76.0
104 150.0 104.0

Product Name: Sanitary Clamped Tee

Size:1/2"-6",DN10-DN150,Φ19-152;

Standard: DIN,3A,SMS,ISO,IDF,AS,BS4852,BPE,and etc.;

Connection: Clamped;

Material: ASTM304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN Clamped Tee
DIN Clamped Tee
Size L1 B
DN15 53.0 34.0
DN20 58.0 34.0
DN25 71.5 50.5
DN32 76.5 50.5
DN40 81.5 50.5
DN50 91.5 64.0
DN65 108.0 91.0
DN80 118.0 106.0
DN100 128.0 119.0
3A 7MP-Clamped Tee
3A 7MP-Clamped Tee
Size L1 B
1° 60.3 50.5
1 1/2° 69.9 50.5
2° 88.9 64.0
2 1/2° 88.9 77.5
3° 95.3 91.0
4° 114.2 119.0
ISO/IDF Clamped Tee
ISO/IDF Clamped Tee
Size L1 B
1° 55.0 50.5
1 1/4° 59.5 50.5
1 1/2° 70.0 50.5
2° 82.0 64.0
2 1/2° 105.0 77.5
3° 110.0 91.0
3 1/2° 125.0 106.0
4° 148.5 119.0
BS4825 Clamped Tee
BS4825 Clamped Tee
Size L1 B
1/2° 57.2 25.4
3/4° 60.3 25.4
1° 66.7 50.5
1 1/2° 73.0 50.5
2° 85.7 64.0
2 1/2° 92.1 77.5
3° 98.4 91.0
4° 120.7 119.0

Product Name: Sanitary Union Tee

Size:1"-6",DN25-DN150,Φ25-152;

Standard: DIN,3A,SMS;

Connection: Union, threaded, screwed;

Material: ASTM304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN Union Tee
DIN Union Tee
Size L1 L2 G
DN20 55.0 59.0 RD44×1/6
DN25 67.0 70.0 RD52×1/6
DN32 72.0 75.0 RD58×1/6
DN40 79.0 80.0 RD65×1/6
DN50 90.0 91.0 RD78×1/6
DN65 100.0 105.0 RD95×1/6
DN80 113.0 115.0 RD110×1/4
DN100 126.0 128.0 RD130×1/4
SMS Union Tee
SMS Union Tee
Size L1 L2 G
25 67.0 73.0 RD40×1/6
38 83.0 90.0 RD60×1/6
51 95.0 102.0 RD70×1/6
63 119.0 128.5 RD85×1/6
76 124.0 134.5 RD98×1/6
102(small) 167.0 177.0 RD125×1/6
102(big) 167.0 177.0 RD132×1/6

Product Name: Sanitary Short Pulled Tee

Size:1/2"-12",DN10-DN300,Φ25-305;

Standard: DIN,3A,SMS,ISO,IDF,AS,BS4852,BPE;

Connection: Welded;

Material: ASTM304,316,316L;

Application:Dairy,beer,food,beverage,chemical,cosmetic,pharmaceutical,biological engineering industry, etc.;

Surface Treatment: Polished ID & OD, ID polished, OD polished, unpolished,tumbled;

Grit & Finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

DIN Short Type Welded Tee
DIN Short Type Welded Tee
Size L1 L2 D
DN10 7.5 26.0 12.0
DN15 10.5 35.0 18.0
DN20 12.5 40.0 22.0
DN25 16.0 50.0 28.0
DN32 19.5 55.0 34.0
DN40 22.5 60.0 40.0
DN50 30.0  70.0 52.0
DN65 39.5 80.0 70.0
DN80 47.5 90.0 85.0
DN100 58.0 100.0 104.0
DN125 70.5 187.0 129.0
DN50 33.0 225.0 154.0
3A Equal Pulled Tee
3A Equal Pulled Tee
Size D L2 L1 T
1.0″ 25.4 16 57.2 1.65
1.5″ 38.1 22 84.2 1.65
2.0″ 50.8 29 104.8 1.65
2.5″ 63.5 35 119.0 1.65
3.0″ 76.2 41 131.8 1.65
4.0″ 101.6 54 174.6 2.10
3A Reducing Pulled Tee
3A Reducing Pulled Tee
Size D d L1 L2
1.5″×1.0″ 38.1 25.4 42.1 22
2.0″×1.5″ 50.8 38.1 52.4 29
2.5″×2.0″ 63.5 50.8 59.5 35
3.0″×2.0″ 76.2 50.8 65.9 41
3.0″×2.5″ 76.2 63.5 65.9 41
4.0″×2.0″ 101.6 50.8 117.5 54
4.0″×2.5″ 101.6 63.5 117.5 54
4.0″×3.0″ 101.6 76.2 117.5 54
SMS Short Type Welded Tee
SMS Short Type Welded Tee
Size L1 L2 D
25 14.5 55.0 25.0
38 21.5 70.0 38.0
51 29.5 82.0 51.0
63 36.0 105.0 63.5
76 43.0 110.0 76.0
104 57.0 150.0 104.0
AS Pulled Tee - Welded
AS Pulled Tee - Welded
Size L1 L2 D T
1/2″ 38.2 9.35 12.7 1.6
3/4″ 57.2 12.55 19.1 1.6
1″ 76.2 15.7 25.4 1.6
1 1/4″ 95.4 18.9 31.8 1.6
1 1/2″ 114.0 22.05 38.1 1.6
2″ 152.4 28.4 50.8 1.6
2 1/2″ 190.0 34.75 63.5 1.6
3″ 228.4 41.1 76.2 1.6
4″ 304.8 53.8 101.6 2.0
AS Reducing Tee - Welded
AS Reducing Tee - Welded
Size L1 L2 D d  T
1 1/2″×1″ 80 22.0538.125.4 1.6
2″×1″ 80 28.450.825.4 1.6
2″×1 1/2″ 80 28.450.838.1 1.6
2 1/2″×1 1/2″ 80 34.7563.538.1 1.6
2 1/2″×2″ 80 34.7563.550.8 1.6
3″×1 1/2″ 8041.176.2 38.1 1.6
3″×2″ 80 41.176.250.8 1.6
3″×2 1/2″ 80 41.1 76.263.51.6
4×2″ 80 53.8 101.650.81.6
4″×2 1/2″ 80 53.8101.663.5 1.6
4″×3″ 80 53.8101.676.2 2.0
