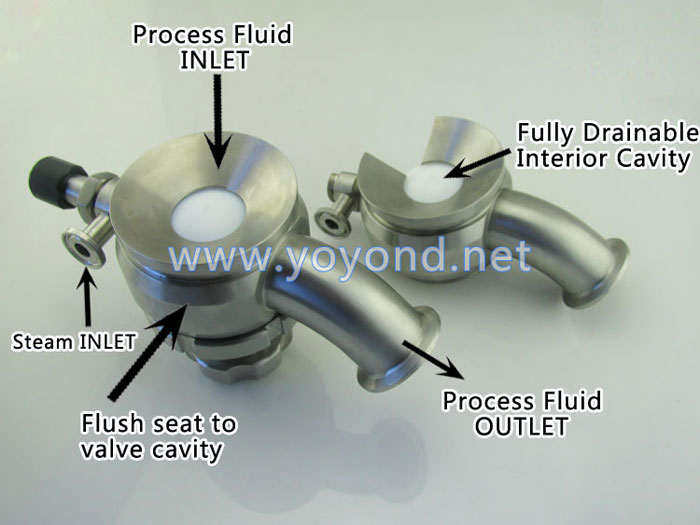

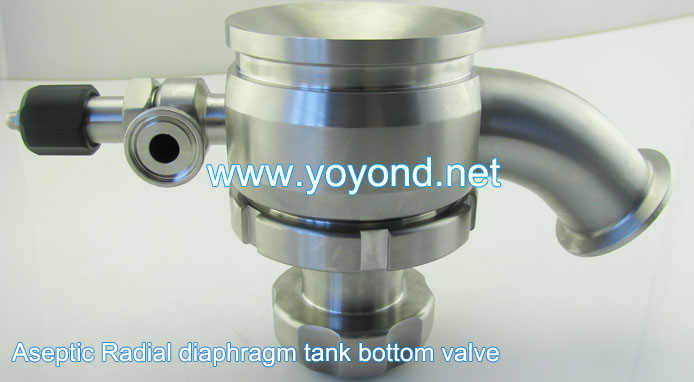

Product Name: Aseptic Radial Diaphragm Tank Bottom Valve

Product description

Radial diaphragm valve are mainly manual and pneumatic
operations, inside body finished Ra≤0.5 um, in order to meet the
requirements of biopharmaceutical industry.

Application
●Mainly used in pharmaceutical, biotech, health care, cosmetic and food industries.
●In the pharmaceutical industry, the valve can be used as process control valve, dosing valve, sampling valve and aseptic drain valve etc.
●In the food industry, this valve is often used as guide device, such as sampling valve, dosing valve (For example adding CO2/Nitrogen to beer, add seasoning to drink.)

Structure features

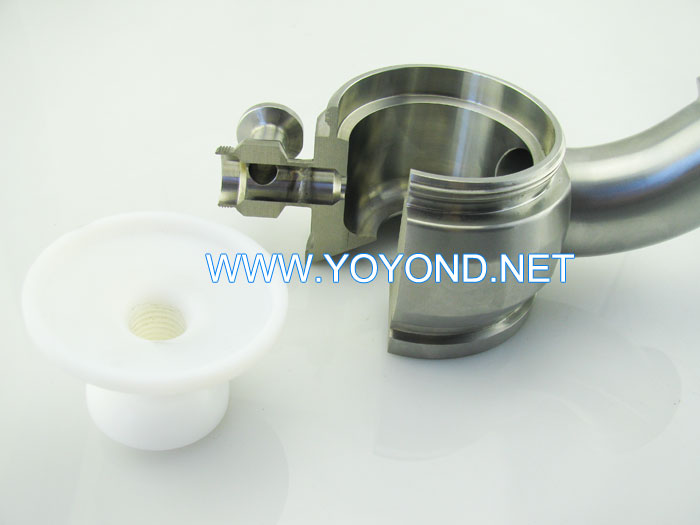

●New diaphragm design.
●Maintenance is simple, safe, and easy to operate.

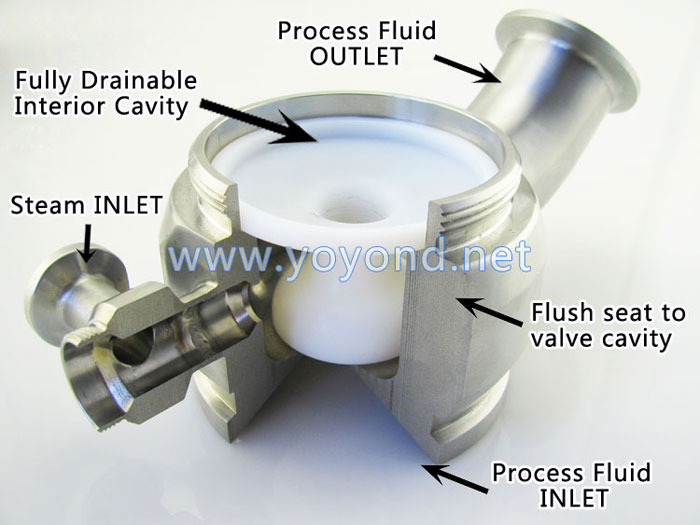

●Self-emptying function.
●Dead leg minimization.
●Had excellent KV date
●CIP/SIP sterilization and cleaning

Technical specifications

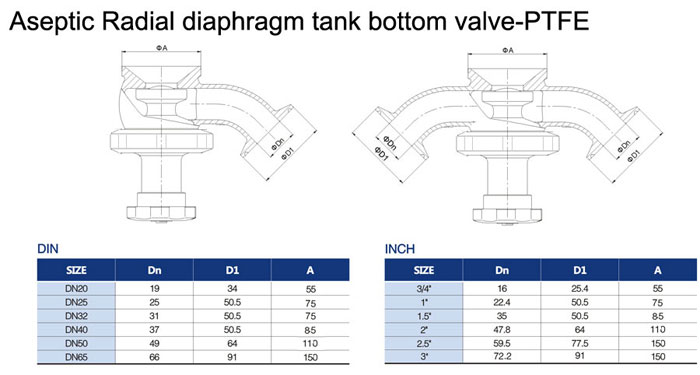

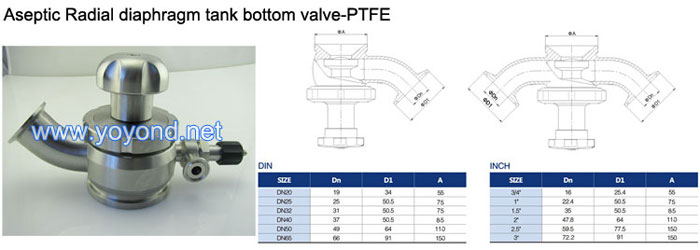

●Specification: 3/4 "-3", DN20-DN80
●Working temperature: -10℃ to 120 ℃ (PTFE)
●Material: 316L stainless steel (1.4404) and Bonnet is 304(1.4301).
●Max pressure: 6 bar
●Operation: manual/pneumatic interchangeable
●Actuator pressure: 5 bar - 6 bar
●Connection: welding, clamp, and other special connection

For help or to request more information, contact yoyondsales@gmail.com
