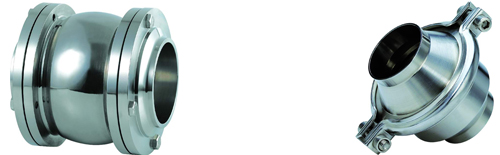

Product Name: Sanitary Check Valve

Size: DN15-DN100, φ19-108;

Standard: DIN, SMS, ISO, IDF, 3A;

Connection: Welded, Threaded, Clamped, ;

Material: ASTM304, 316,316L;

Application: dairy, beer, food, beverage, pharmaceutical, biological engineering and etc. Industries;

Surface Treatment: CNC Machined;

Grit & finish: 1. #400(Ra≤0.4μm) 2. #320(Ra≤0.5μm) 3. #240(Ra≤0.6μm) 4. #180(Ra≤0.8μm)

Date Download:Check_Valve(0.806MB)
DIN WELDED CHECK VALVE
SIZE B2 D A
DN15 87.0 18.0 76.5
DN20 87.0 22.0 76.5
DN25 87.0 28.0 76.5
DN32 87.0 34 76.5
DN40 87.O 40.0 76.5
DN50 100.0 52.0 87.9
DN65 115.0 70.0 96.0
DN80 128.0 85.0 116.5
DN100 164.0 104.0 156.5
DIN CLAMPED CHECK VALVE
DIN CLAMPED CHECK VALVE
SIZE B2 B A
DN15 87.0 34.0 102.0
DN20 87.0 34.0 102.0
DN25 87.0 50.5 102.0
DN32 87.0 50.5 102.0
DN40 87.0 50.5 102.0
DN50 100.0 64.0 113.4
DN65 115.0 91.0 122.0
DN80 128.0 106.0 142.0
DN100 164.0 119.0 182.0
DIN THREADED CHECK VALVE
DIN THREADED CHECK VALVE
SIZE B2 G A
DN15 87.0 RD34X1/8 110.5
DN20 87.0 RD44X1/6 114.5
DN25 87.0 RD52X1/6 116.5
DN32 87.0 RD58X1/6 116.5
DN40 87.0 RD65X1/6 116.5
DN50 100.0 RD78X1/6 130.0
DN65 115.0 RD95X1/6 142.5
RN80 128.0 RD110X1/4 166.5
DN100 164.0 RD130X1/4 212.5
DIN BALL TYPE CHECK VALVE
DIN BALL TYPE CHECK VALVE
Size A B C D
DN40 115.0 100.0 38.0 41.0
DN50 125.0 110.0 50.0 53.0
DN65 135.0 130.0 66.0 70.0
DN80 145.0 146.0 81.0 85.0
DN100 155.0 166.0 100.0 104.0
