Product Name: Sanitary Safety Valve
Technical Parameters
Working Pressure: 0.5-1.0MPa;
Working Temperature: -10℃ ~ 120℃;
Valve Material: 304, 304L, 316L;
Sealing Material: PTFE, EPDM, FPM;
Air Pressure: 5-8bar;

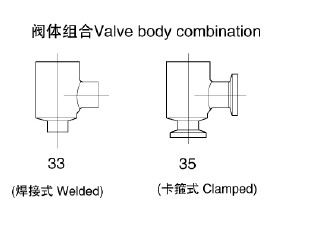

Connection: Welded, Clamped, Threaded;
Application: Pipeline and equipment protection, overpressure off loading
Control Range: open and close by spring pressure, setting pressure by adjusting the scale on the screw and valve body.

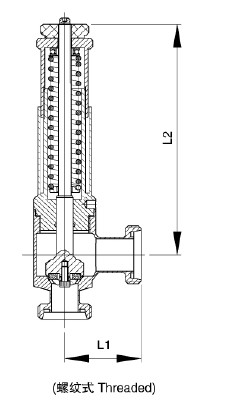

Date Download:Safety Valve(1.284MB)Size | L2 | L1
|
|||||
---|---|---|---|---|---|---|---|
25 | 210.0 | 60.0 | 40.0 | 60.0 | |||
32 | 220.0 | 60.0 | 40.0 | 60.0 | |||
40 | 230.0 | 70.0 | 50.0 | 70.0 | |||
50 | 240.0 | 80.0 | 60.0 | 80.0 |
